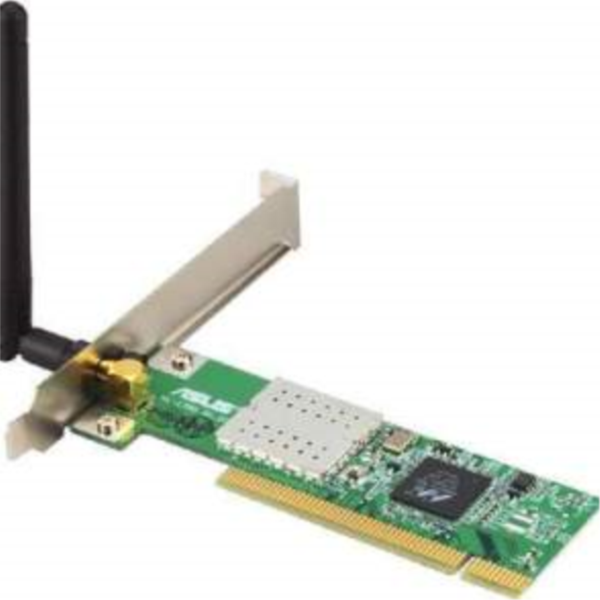

WL-138G V2 Wireless LAN PCI Adapter IEEE802.11G 54Mbps - supports Windows 7
$41.40 Gst Inclusive
Product Code: 101658
Availability: Online Order
PCI bus power management interface specification 1.0 compliant
IEEE 802.11g/b standard for 2.4 GHz Wireless LAN
64/128 bit WEP encryption, support WPA
PCI local bus specification Revision 2.2 compliant
Reverse connector with a detachable antenna
support Windows 2000/XP
Integrate all tools and indicate real time status information on system tray
Diagnose and configure your wireless network settings with on-line trouble shooting feature.
Support automatic roaming and network reconfiguration between different locations
Explore your wireless networking topology through a handy way
Download the newest driver and utilities from Internet
WEP (64, 128 bit) encryption , WPA support.
IEEE 802.11g/b standard for 2.4 GHz Wireless LAN
64/128 bit WEP encryption, support WPA
PCI local bus specification Revision 2.2 compliant
Reverse connector with a detachable antenna
support Windows 2000/XP
Integrate all tools and indicate real time status information on system tray
Diagnose and configure your wireless network settings with on-line trouble shooting feature.
Support automatic roaming and network reconfiguration between different locations
Explore your wireless networking topology through a handy way
Download the newest driver and utilities from Internet
WEP (64, 128 bit) encryption , WPA support.
|
Data Rate
|
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b: 1, 2, 5.5, 11Mbps |
|
Modulation
|
CCK (11Mbps, 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps).OFDM
|
|
Operating Frequency
|
2.412-2.462 GHz (N. America);
2.412-2.484 GHz (Japan); 2.412-2.472 GHz (Europe ETSI); 2.457-2.472 GHz (France) |
|
RF Output Power
|
14 ~ 18 dBm (at nominal temp. range)
|
|
Antenna
|
Reverse connector (RP-SMA) with a detachable antenna
Range: Indoor 130 ft (40 m), outdoor (LOS, Light-Of-Sight) 1000 ft (310 m) at 11MbpsIndoor 80 ft (25 m), outdoor (LOS, Light-Of-Sight) 200 ft (60 m) at 54MbpsThe range may vary by different environment |
|
Utilities
|
Mobile control center:
Integrate all tools and indicate real time status information on system tray. Wireless setting: Diagnose and configure your wireless network settings with on-line trouble shooting feature. Mobile manager: Support automatic roaming and network reconfiguration between different locations. Site survey: Explore your wireless networking topology through a handy way. Live Update: Download the newest driver and utilities from Internet |
|
Support OS
|
Windows 2000 and XP
Windows XP Compatibility Native support for all built-in WLAN functions, like Zeroconfig, Media Sense and 802.1x |
|
LEDs
|
Link
|
|
Support PCI Host Interface
|
PCI 2.2
|
