TPLink 10/100/1000Mbps Gigabit
TPLink 10/100/1000Mbps Gigabit
10/100/1000Mbps Gigabit LAN Card TG-3269
$44.85 Gst Inclusive
Product Code: 102204
Availability: Online Order
Add To Cart

Add to Wishlist

Add to Compare

Warranty: Three Months RTB Warranty
Manufacturer Url: TPLink

0 reviews :

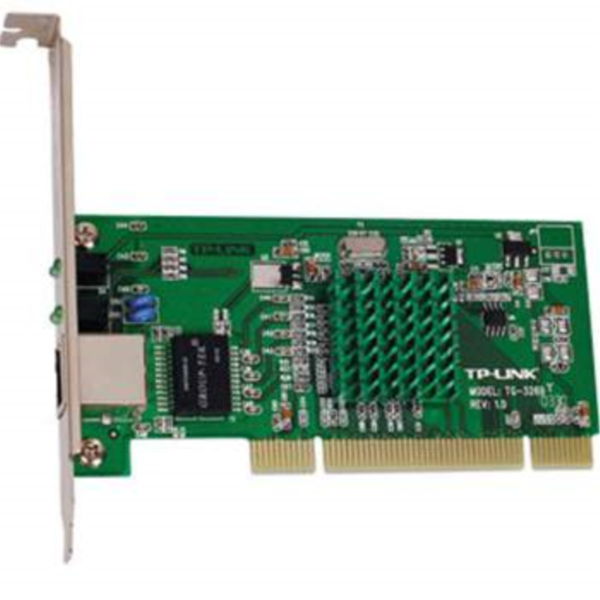

TG-3269 is a 10/100/1000Mbps, 32Bit PCI-bus Gigabit Ethernet adapter. With single UTP/STP and the Auto-Negotiation (Nway) function support, the Card can auto-negotiate 10Mbps, 100Mbps or 1000Mbps speed, and half or full duplex mode with its link partner (a hub, for example). Full range of drivers are provided for major Operating Systems.
  • Comply IEEE802.1P, IEEE802.1Q, IEEE802.3 10 Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T
  • 32bit, 33/66 MHZ PCI bus master capability
  • 10/100/1000Mbps triple speed, full/half duplex operation
  • Up to 1000Mbps when full duplex operation mode
  • IEEE 802.3x Full Duplex flow control and supports both symmetrical and asymmetrical flow control.
  • IEEE 802.1p, 802.1Q ,802.3ab compliant
  • PCI Specification Revision 2.2 compliant
  • Easy-to-view led for diagnostics
  • Automatic MDI/MDIX crossover for all 3 speeds
  • Large transmit & receive FIFO
  • Auto configure IRQ and I/O address

Specifications:

Standard Conformance: IEEE802.1p, IEEE802.1Q, IEEE802.3 10Base-T, IEEE802.3u 100Base-Tx, IEEE802.3ab 1000Base-T
Access Method: CSMA/CD
PCI Bus: 32bit, 33/66MHz PCI Bus
Number of Ports Single 10M/100M/1000m Utp/STP port
LED Indicators: one for 10M link/Activity; one for 100M Link/Activity, one for 1000M Link/Activity, one for Full-duplex
Network Media (Cable): 10Base-T: UTP category 3, 4,5 cable up to 100m100Base-TX: UTP category 5 cable up to 100m1000Base-T: UTP category 6 cable up to 100m (recommend to use cat.5e cable)
Drivers Support: Netware 4.2, 5.x and 6.x ODI driver Microsoft Window 98, Windows 98SE, Windows ME Windows 2000, Windows XP Windows NT Linux
