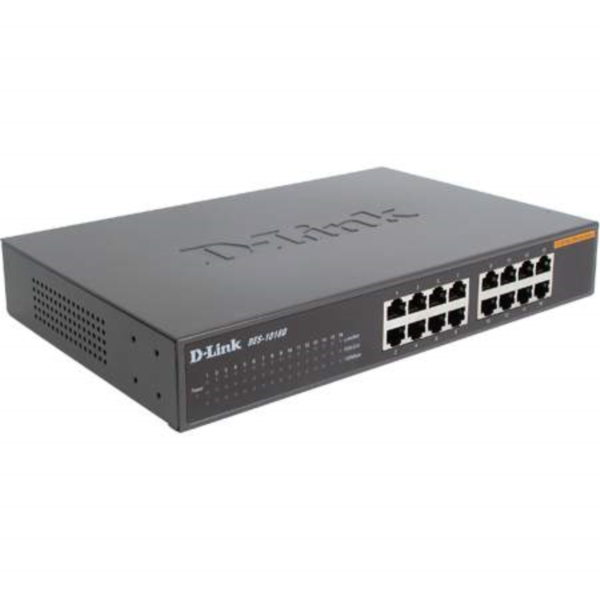

DES-1016D 16 Port 10/100Mbps Unmanaged Switch
$148.35 Gst Inclusive
Product Code: 104694
Availability: Online Order
16 x NWay 10/100BASE-TX Fast Ethernet Ports
Full and half duplex support for each port
All ports support auto-negotiation function
Desktop sized, Saving space
Supplied with 19" rack-mount kit
Full and half duplex support for each port
All ports support auto-negotiation function
Desktop sized, Saving space
Supplied with 19" rack-mount kit
The D-Link DES-1016D unmanaged switch with 16 x 10/100BASE-T ports is the latest addition to our popular line of Desktop Ethernet network products. D-Link’s line of switch products combines ease of use with unsurpassed performance for an exceptional value.
Ease of Use
The DES-1016D has 16 plug-and-play ports, the switch is a perfect choice for workgroups to upgrade performance in a client/server environment. The ports can be connected to servers in full-duplex, or hubs in half-duplex.
Auto Speed Sensing
The Switch senses whether a network device is running at 10Mbps or 100Mbps and automatically adjusts for optimal performance.
Auto Negotiation (Full or Half Duplex)
Whether you are running at Half- or in Full-Duplex, the Switch automatically negotiates and runs the highest supported transmission rate.
Auto MDI/MDIX Crossover
All ports support auto-negotiating MDI/MDIX detection, which eliminates the need for crossover cables or uplink ports. The DES-1016D is the perfect choice for Plug-&-Play support for 10BASE-T and 100BASE-T networks.
Wire-speed Performance
The DES-1016D features a non-blocking wire-speed architecture, with a 3.2Gbps switching capacity, for maximum data throughput. The DES-1016D also features an integrated universal power supply, and per port diagnostics LEDs that make it easy to “spot check” for problems. With wire-speed filtering and Store-and-Forward switching, the DES-1016D maximizes network performance while minimizing the propagation of bad network packets.
Key Features
16 x 10/100Mbps ports
Auto MDI/MDIX for each port
Full/half-duplex support for each port
Flow control for protection against data loss for each port
Auto-learning of network configuration
Secure store-and-forward switching scheme
Per-port auto-correction
Ease of Use
The DES-1016D has 16 plug-and-play ports, the switch is a perfect choice for workgroups to upgrade performance in a client/server environment. The ports can be connected to servers in full-duplex, or hubs in half-duplex.
Auto Speed Sensing
The Switch senses whether a network device is running at 10Mbps or 100Mbps and automatically adjusts for optimal performance.
Auto Negotiation (Full or Half Duplex)
Whether you are running at Half- or in Full-Duplex, the Switch automatically negotiates and runs the highest supported transmission rate.
Auto MDI/MDIX Crossover
All ports support auto-negotiating MDI/MDIX detection, which eliminates the need for crossover cables or uplink ports. The DES-1016D is the perfect choice for Plug-&-Play support for 10BASE-T and 100BASE-T networks.
Wire-speed Performance
The DES-1016D features a non-blocking wire-speed architecture, with a 3.2Gbps switching capacity, for maximum data throughput. The DES-1016D also features an integrated universal power supply, and per port diagnostics LEDs that make it easy to “spot check” for problems. With wire-speed filtering and Store-and-Forward switching, the DES-1016D maximizes network performance while minimizing the propagation of bad network packets.
Key Features
16 x 10/100Mbps ports
Auto MDI/MDIX for each port
Full/half-duplex support for each port
Flow control for protection against data loss for each port
Auto-learning of network configuration
Secure store-and-forward switching scheme
Per-port auto-correction
