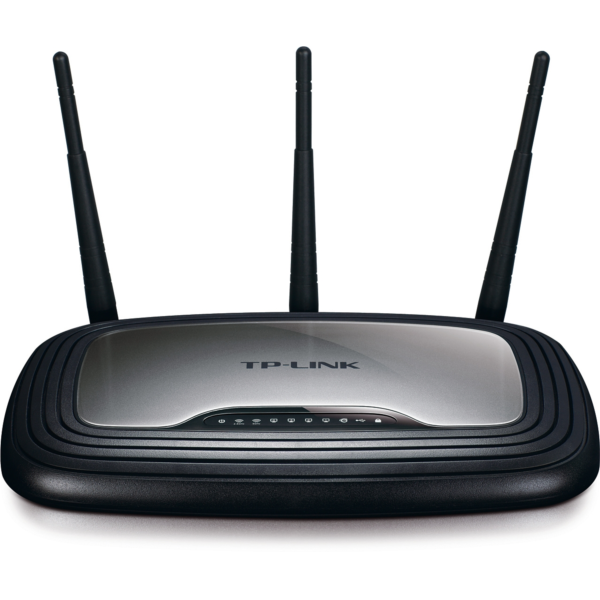

TP-Link WR2543ND 450Mbps Dual band Wireless N Gigabit Router, Atheros, 2.4GHz or 5GHz Selectable, 1 USB Port
$159.85 Gst Inclusive
Product Code: 107790
Availability: Online Order
TP-Link’s TL-WR2543ND is the most robust networking foundation within the TP-Link’s range. This product is great for playing games, viewing large HD files and sharing files over the network. It makes everyday use seamlessly easy.
TL-WR2543ND has introduced a dual channel to make sure that no devices will intrude into the network and to give the user a smoother experience. The traditional 2.4GHz network is now becoming a norm where most wireless connections are connected to this channel, which includes: cordless phones, microwaves, automatic garage opening doors, and potential neighbouring wireless networks. This could potentially interrupt the connection or disrupt any unsaved work, you could possibly say that the network could get ‘crowded’ with all these connections on the one channel.
Now, the TL-WR2543ND supports the 5GHz network wireless connection for home networks at 450Mbps. Not only is this channel uncluttered but it offers a significantly improved wireless stability and overall performance.
Compatible with Wi-Fi Protected Setup™ (WPS), TL-WR2543ND features Quick Security Setup that allows users to almost instantly setup their security simply by pressing the WPS button on the router and automatically establishing a WPA2 secure connection, which is more secure when compared with WEP encryptions.
Also included is a USB 2.0 port which allows the user to plug in a USB storage device or a printer so others can share these devices over the network.
A built-in media server will let you to share music videos, and photos with the media player on their, PCs, X-Box 360’s, PS3’s and other compatible devices.
File sharing can never be easier, the TL-WR2543ND has a built-in gigabit Ethernet switch which gives the user to be faster and more efficient, which allows them for larger file sharing, such as high video definition within minutes, not hours.
This is user-friendly product to setup with just plug in the connections and inserts the setup CD so the user can have a safe and reliable setup.
TP-Link's 3 year warranty and 24-hour support compliment this product and ensure that there are no issues.
TL-WR2543ND has introduced a dual channel to make sure that no devices will intrude into the network and to give the user a smoother experience. The traditional 2.4GHz network is now becoming a norm where most wireless connections are connected to this channel, which includes: cordless phones, microwaves, automatic garage opening doors, and potential neighbouring wireless networks. This could potentially interrupt the connection or disrupt any unsaved work, you could possibly say that the network could get ‘crowded’ with all these connections on the one channel.
Now, the TL-WR2543ND supports the 5GHz network wireless connection for home networks at 450Mbps. Not only is this channel uncluttered but it offers a significantly improved wireless stability and overall performance.
Compatible with Wi-Fi Protected Setup™ (WPS), TL-WR2543ND features Quick Security Setup that allows users to almost instantly setup their security simply by pressing the WPS button on the router and automatically establishing a WPA2 secure connection, which is more secure when compared with WEP encryptions.
Also included is a USB 2.0 port which allows the user to plug in a USB storage device or a printer so others can share these devices over the network.
A built-in media server will let you to share music videos, and photos with the media player on their, PCs, X-Box 360’s, PS3’s and other compatible devices.
File sharing can never be easier, the TL-WR2543ND has a built-in gigabit Ethernet switch which gives the user to be faster and more efficient, which allows them for larger file sharing, such as high video definition within minutes, not hours.
This is user-friendly product to setup with just plug in the connections and inserts the setup CD so the user can have a safe and reliable setup.
TP-Link's 3 year warranty and 24-hour support compliment this product and ensure that there are no issues.
HARDWARE FEATURES
Interface
4 10/100/1000Mbps LAN Ports
1 10/100/1000Mbps WAN Port
1 USB 2.0 Port
Button
WPS Button
Power On/Off Button:
Reset Button
External Power Supply
12VDC / 1.5A
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
Antenna
3 detachable dual band antennas (RP-SMA)
Dimensions( W x D x H )
9.2x6.1x1.4 in.(234x155x36mm)
WIRELESS FEATURES
Frequency
2.4-2.4835GHz
5.180-5.240GHZ
5.745-5.825GHz
Signal Rate
Up to 450Mbps
Reception Sensitivity
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
SOFTWARE FEATURES
WAN Type
Dynamic IP/Static IP/PPPoE/
PPTP(Dual Access)/L2TP(Dual Access)/BigPond
DHCP
Server, Client, DHCP Client List,
Address Reservation
Quality of Service
WMM, Bandwidth Control
Port Forwarding
Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS
DynDns, Comexe, NO-IP
VPN Pass-Through
TP, L2TP, IPSec
Access Control
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
USB Sharing
Support Samba/FTP/Media Server/Printer Connection
Management
Access Control
Local Management
Remote Management
OTHERS
Certification
CE, FCC, RoHS
Package Contents
TL-WR2543ND
3 detachable dual band antennas
Power supply unit
Resource CD
Quick Installation Guide
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment
Operating Temperature: 0?~40?
Storage Temperature: -40?~70?
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
