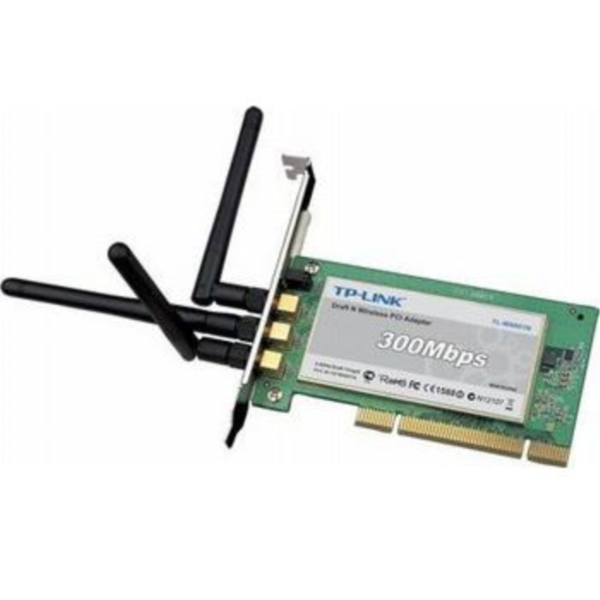

TP-Link WN951N 300 Mbps Wireless N PCI Adapter
$56.35 Gst Inclusive
Product Code: 109007
Availability: Online Order
300M wireless transmission rate
3 transmitting and 3 receiving MIMO infrastructure compared with the common 2 transmitting and 3 receiving infrastructure brings improved wireless transmission rates and stability.
SST technology promotes high wireless transmission performance in long distance and high interference environments
Compatible with 11g and 11b equipment, Intel Centrino Compatibility tested
3 transmitting and 3 receiving MIMO infrastructure compared with the common 2 transmitting and 3 receiving infrastructure brings improved wireless transmission rates and stability.
SST technology promotes high wireless transmission performance in long distance and high interference environments
Compatible with 11g and 11b equipment, Intel Centrino Compatibility tested
Software Specification
Standards IEEE 802.11n(draft 2.0), IEEE 802.11g, IEEE 802.11b, CSMA/CA with ACK
Wireless Signal Rates With Automatic Fallback 11n: 270/243/216/162/108/81/54/27Mbps
135/121.5/108/81/54/40.5/27/13.5Mbps
130/117/104/78/52/39/26/13Mbps
65/58.5/52/39/26/19.5/13/6.5Mbps
11g: 54/48/36/24/18/12/9/6M(adaptive)
11b: 11/5.5/2/1M(adaptive)
Frequency Range 2.4-2.4835GHz
Wireless Transmit Power 20dBm(MAX)
Modulation Type OFDM/CCK/16-QAM/64-QAM
Receiver Sensitivity 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Security 64/128/152 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Support Operating System Windows 2000/XP/Vista
Hardware Specification
Interface 32-bit PCI
Antenna Type Omni Directional, Detachable
Antenna Power 3 x 2dBi
Certifications CE, FCC
Operating temperature 0°C~40°C (32?~104?)
Storage temperature -40°C~70°C (-40?~158?)
Relative humidity 10% ~ 90%, non condensation
Storage Humidity 5%~95% non-condensing
Dimensions 5.2 x 4.8 x 0.9 in. (133 x 121mm x 21.6mm)
Standards IEEE 802.11n(draft 2.0), IEEE 802.11g, IEEE 802.11b, CSMA/CA with ACK
Wireless Signal Rates With Automatic Fallback 11n: 270/243/216/162/108/81/54/27Mbps
135/121.5/108/81/54/40.5/27/13.5Mbps
130/117/104/78/52/39/26/13Mbps
65/58.5/52/39/26/19.5/13/6.5Mbps
11g: 54/48/36/24/18/12/9/6M(adaptive)
11b: 11/5.5/2/1M(adaptive)
Frequency Range 2.4-2.4835GHz
Wireless Transmit Power 20dBm(MAX)
Modulation Type OFDM/CCK/16-QAM/64-QAM
Receiver Sensitivity 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Security 64/128/152 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Support Operating System Windows 2000/XP/Vista
Hardware Specification
Interface 32-bit PCI
Antenna Type Omni Directional, Detachable
Antenna Power 3 x 2dBi
Certifications CE, FCC
Operating temperature 0°C~40°C (32?~104?)
Storage temperature -40°C~70°C (-40?~158?)
Relative humidity 10% ~ 90%, non condensation
Storage Humidity 5%~95% non-condensing
Dimensions 5.2 x 4.8 x 0.9 in. (133 x 121mm x 21.6mm)
