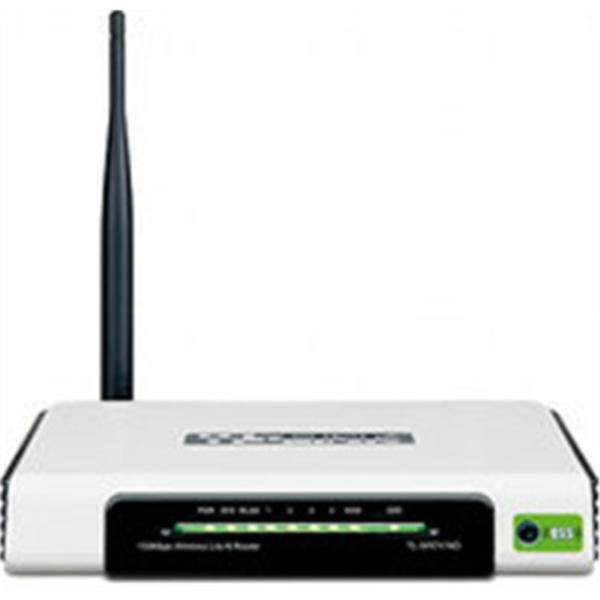

WA701ND Lite-N 150 Mbps Wireless Router
$43.70 Gst Inclusive
Product Code: 110034
Availability: Online Order
Standards IEEE 802.11n*,IEEE 802.11g, IEEE 802.11b
Wireless Signal Rates Up to 150Mbps
Frequency Range 2.4-2.4835GHz
Wireless Transmit Power 20dBm(max. EIRP)
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
Receiver Sensitivity 130M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Mode AP Mode
Multi-SSID Mode
AP Client Mode
Repeater Mode (WDS / Universal )
AP+ Bridge mode (point-to-point / point to Multi-point)
Hardware Specification
Interface 1 10/100 RJ45 Ethernet Port, Supporting PoE*
Antenna 4dBi Detachable Omni Directional Antenna
Power Supply Unit Input: localized to country of sale
Output: 9VDC / 0.85A Switching PSU
Operating temperature 0oC~40oC (32oF~104oF)
Storage temperature -40oC~70oC (-40oF~158oF)
Relative humidity 10% ~ 90%, Non Condensation
Storage Humidity 5%~95% Non-Condensing
Dimensions 5.9 x 3.9 x 1.1 (in.), 150x100x28(mm)
