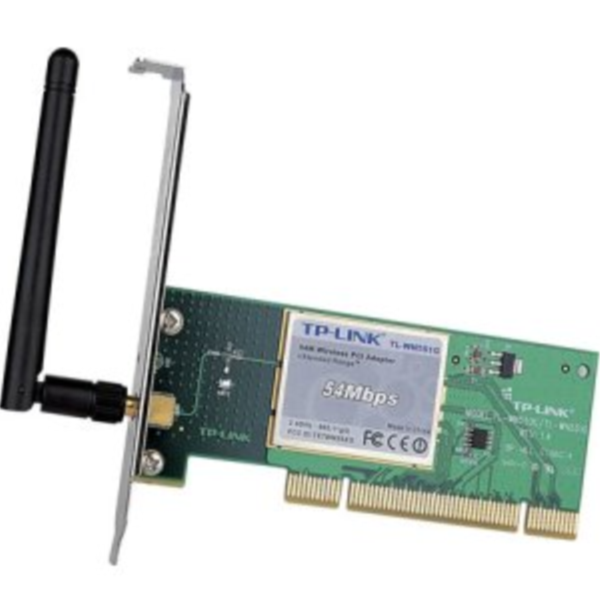

WN350GD 54 Mbps Wireless PCI Adaptor
$26.45 Gst Inclusive
Product Code: 110157
Availability: Online Order
The TL-WN350GD 54Mbps Wireless Network Mini PCI Adapter are fully compatible with IEEE 802.11b and IEEE 802.11g standard. The auto-sensing capability allows high packet transfer rates of up to 54Mbps for maximum throughput, or dynamic range shifting to lower speeds due to distance or operating limitations in an environment with a lot of electromagnetic interference. The Wireless Adapter can also interoperate with all the 11Mbps wireless (802.11b) products. Your wireless communications are protected by WPA/WPA2 encryption for high security.
•32-bit PCI Connector
•Up to 54Mbps and fully Compatible with IEEE 802.11g & 802.11b products
•Supports 64/128/152-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X
•Supports 54/48/36/24/18/12/9/6/11/5.5/2/1Mbps wireless LAN data transfer rates
•Supports Ad-Hoc and Infrastructure modes
•Eases to configure and provides monitoring information
•Detachable 2dBi antenna for TL-WN350GD
•Supports Windows 2000, XP, Vista
•32-bit PCI Connector
•Up to 54Mbps and fully Compatible with IEEE 802.11g & 802.11b products
•Supports 64/128/152-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X
•Supports 54/48/36/24/18/12/9/6/11/5.5/2/1Mbps wireless LAN data transfer rates
•Supports Ad-Hoc and Infrastructure modes
•Eases to configure and provides monitoring information
•Detachable 2dBi antenna for TL-WN350GD
•Supports Windows 2000, XP, Vista
Standards IEEE 802.11g, IEEE 802.11b
Wireless Signal Rates With Automatic Fallback 11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
Frequency Range 2.4 GHz
Output Power 18dBm
Modulation Type 1M DBPSK, 2M DQPSK, 5.5M/11M CCK, 6M/9M/12M/18M/24M/36M/48M/54M OFDM
Receiver Sensitivity 54M:-68dBm@10% PER
11M:-85dBm@8% PER
6M:-88dBm@10% PER
1M:-90dBm@8% PER
256K:-105dBm@8% PER
Work Mode Ad-Hoc
Infrastructure
Wireless Security 64/128/152 bit WEP
WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Support Operating System Windows 2000/XP/Vista
*:EIRP-total effective radiated power is 100dBm(100mW), antenna gain will not influence wireless transmit power
Hardware Specification
Interface 32-bit PCI connector
Antenna 2dBi Detachable Omni-directional Antenna
(Reverse SMA Connector)
Certifications CE, FCC
Operating Temperature 0°C~40°C (32?~104?)
Storage Temperature -40°C~70°C (-40?~158?)
Relative Humidity 10% ~ 90% non-condensing
Storage Humidity 5%~95% non-condensing
Dimensions 5.2 × 4.8 × 0.9 in. (133 × 121 × 22 mm)
