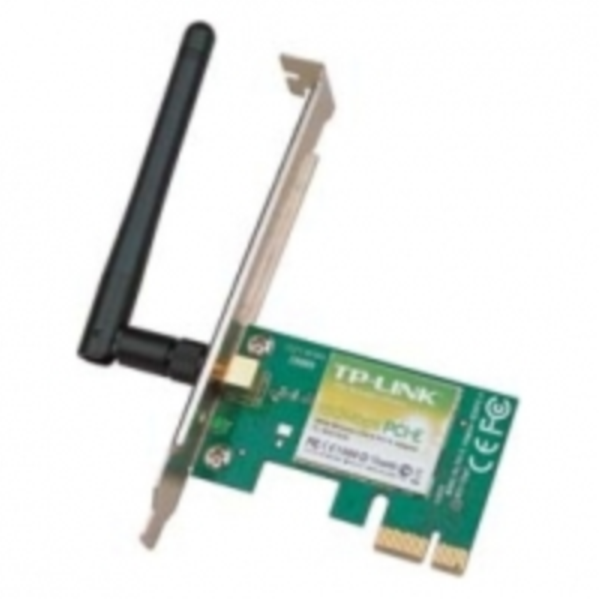

WN781N 150 Mbps Wireless Lite N <font color = red>PCI Express
$44.85 Gst Inclusive
Product Code: 110354
Availability: Online Order
Adopts AlignTM technology, with transmit speed up to 150Mbps
Provides PCI Express connector having a wider compatibility with any standard PCI Express slot
Supports QSS function, complying with WPS for worry free wireless security
Supports 64/128/152-bit WEP, WPA /WPA2/WPA-PSK/WPA2-PSK(TKIP/AES), supports IEEE 802.1X
Supports roaming technology, guaranteeing uninterrupted wireless connection
Supports Ad-Hoc/Infrastructure modes
Seamlessly compatible with 802.11n/b/g devices
Supports Windows 2000, Windows XP 32/64bit, Vista 32/64bit
Provides PCI Express connector having a wider compatibility with any standard PCI Express slot
Supports QSS function, complying with WPS for worry free wireless security
Supports 64/128/152-bit WEP, WPA /WPA2/WPA-PSK/WPA2-PSK(TKIP/AES), supports IEEE 802.1X
Supports roaming technology, guaranteeing uninterrupted wireless connection
Supports Ad-Hoc/Infrastructure modes
Seamlessly compatible with 802.11n/b/g devices
Supports Windows 2000, Windows XP 32/64bit, Vista 32/64bit
Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Wireless Speed
11n: Up to 150Mbps
11g: Up to 54Mbps
11b: Up to 11Mbps
Frequency Range 2.4-2.4835GHz
Wireless Transmit Power 18dBm(MAX EIRP)
Modulation Type OFDM/CCK/16-QAM/64-QAM
Receiver Sensitivity
(without Standards antenna)
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Work Mode Ad-Hoc
Infrastructure
Wireless Security 64/128 bits WEP
WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Support Operating System Windows 2000,Windows XP(32/64bits),Windows Vista(32/64bits)
Hardware Specification
Interface
PCI Express
Antenna Type
Mini-omni, 2dBi
Certifications
CE, FCC
Operating Temperature
0oC~40oC (32oF~104oF)
Storage Temperature
-40oC~70oC (-40oF~158oF)
Relative Humidity
10% ~ 90%, non-condensing
Storage Humidity
5%~90% non-condensing
Dimensions
4.8x 3.1x 0.8 in. (120.8 x 78.5 x 21.5 mm)
Wireless Speed
11n: Up to 150Mbps
11g: Up to 54Mbps
11b: Up to 11Mbps
Frequency Range 2.4-2.4835GHz
Wireless Transmit Power 18dBm(MAX EIRP)
Modulation Type OFDM/CCK/16-QAM/64-QAM
Receiver Sensitivity
(without Standards antenna)
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Work Mode Ad-Hoc
Infrastructure
Wireless Security 64/128 bits WEP
WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Support Operating System Windows 2000,Windows XP(32/64bits),Windows Vista(32/64bits)
Hardware Specification
Interface
PCI Express
Antenna Type
Mini-omni, 2dBi
Certifications
CE, FCC
Operating Temperature
0oC~40oC (32oF~104oF)
Storage Temperature
-40oC~70oC (-40oF~158oF)
Relative Humidity
10% ~ 90%, non-condensing
Storage Humidity
5%~90% non-condensing
Dimensions
4.8x 3.1x 0.8 in. (120.8 x 78.5 x 21.5 mm)
