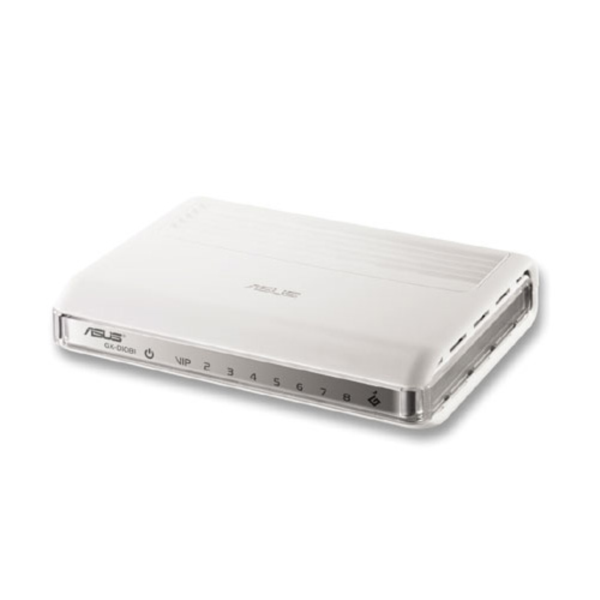

GX-D1081 Power-Saving Gigabit Switch w/8x 10/100/1000Base-T Gigabit Ethernet ports
$112.70 Gst Inclusive
Product Code: 110650
Availability: Online Order
Data Transfer Rates 10Mbps, 100Mbps and 1000Mbps
Protocol IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3x Flow Control
Connector 8 x RJ-45
MAC Address Table 4K
Switch Fabric 16Gbps (2Gbps per port in full duplex mode)
Packet Buffer Memory 1M bits
Transmission Method Store-and-Forward
Cable Connections RJ-45(10Base-T): UTP Category 3, 4, 5
RJ-45(100Base-TX): UTP Category 5
RJ-45(1000Base-T): UTP Category 5, 6
Filtering/Forwarding Rate 10Mbps: 14,880pps/14,880pps
100Mbps: 148,800pps/148,800pps
1000Mbps: 1,488,000pps/1,488,000pps
Power Consumption 7.5W(with Adapter)
Power Supply DC 12V 1A Switching adapter
Dimensions (app.) 158mm (length) x 98mm (width) x 30mm (height)
Net Weight (app.) 260 g
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) ambient
Operating Humidity 10 % ~ 90 % (non-condensing)
Storage Temperature 0°C ~ 70°C
Regulations FCC/CE/LVD/VCCI/C-Tick
Protocol IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3x Flow Control
Connector 8 x RJ-45
MAC Address Table 4K
Switch Fabric 16Gbps (2Gbps per port in full duplex mode)
Packet Buffer Memory 1M bits
Transmission Method Store-and-Forward
Cable Connections RJ-45(10Base-T): UTP Category 3, 4, 5
RJ-45(100Base-TX): UTP Category 5
RJ-45(1000Base-T): UTP Category 5, 6
Filtering/Forwarding Rate 10Mbps: 14,880pps/14,880pps
100Mbps: 148,800pps/148,800pps
1000Mbps: 1,488,000pps/1,488,000pps
Power Consumption 7.5W(with Adapter)
Power Supply DC 12V 1A Switching adapter
Dimensions (app.) 158mm (length) x 98mm (width) x 30mm (height)
Net Weight (app.) 260 g
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) ambient
Operating Humidity 10 % ~ 90 % (non-condensing)
Storage Temperature 0°C ~ 70°C
Regulations FCC/CE/LVD/VCCI/C-Tick
Data Transfer Rates 10Mbps, 100Mbps and 1000Mbps
Protocol IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3x Flow Control
Connector 8 x RJ-45
MAC Address Table 4K
Switch Fabric 16Gbps (2Gbps per port in full duplex mode)
Packet Buffer Memory 1M bits
Transmission Method Store-and-Forward
Cable Connections RJ-45(10Base-T): UTP Category 3, 4, 5
RJ-45(100Base-TX): UTP Category 5
RJ-45(1000Base-T): UTP Category 5, 6
Filtering/Forwarding Rate 10Mbps: 14,880pps/14,880pps
100Mbps: 148,800pps/148,800pps
1000Mbps: 1,488,000pps/1,488,000pps
Power Consumption 7.5W(with Adapter)
Power Supply DC 12V 1A Switching adapter
Dimensions (app.) 158mm (length) x 98mm (width) x 30mm (height)
Net Weight (app.) 260 g
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) ambient
Operating Humidity 10 % ~ 90 % (non-condensing)
Storage Temperature 0°C ~ 70°C
Regulations FCC/CE/LVD/VCCI/C-Tick
Protocol IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3x Flow Control
Connector 8 x RJ-45
MAC Address Table 4K
Switch Fabric 16Gbps (2Gbps per port in full duplex mode)
Packet Buffer Memory 1M bits
Transmission Method Store-and-Forward
Cable Connections RJ-45(10Base-T): UTP Category 3, 4, 5
RJ-45(100Base-TX): UTP Category 5
RJ-45(1000Base-T): UTP Category 5, 6
Filtering/Forwarding Rate 10Mbps: 14,880pps/14,880pps
100Mbps: 148,800pps/148,800pps
1000Mbps: 1,488,000pps/1,488,000pps
Power Consumption 7.5W(with Adapter)
Power Supply DC 12V 1A Switching adapter
Dimensions (app.) 158mm (length) x 98mm (width) x 30mm (height)
Net Weight (app.) 260 g
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) ambient
Operating Humidity 10 % ~ 90 % (non-condensing)
Storage Temperature 0°C ~ 70°C
Regulations FCC/CE/LVD/VCCI/C-Tick
