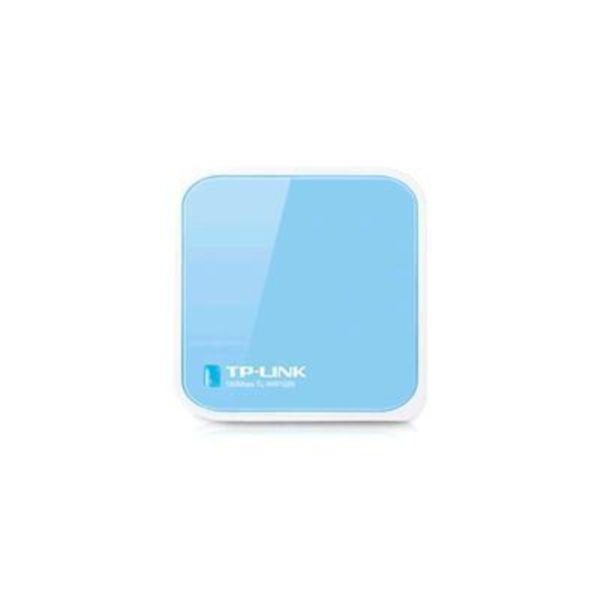

What is the TL-WR702N?
The TL-WR702N is designed for use with tablets, smart phones, handheld game consoles and other portable electronic wireless devices. The device, which can be powered by an external power adapter or USB connection to a computer, can conveniently connect to the internet and share the connection around an average sized room at 150Mbps.The device’s tiny size makes it ideal for use on the road and is powerful enough to satisfy almost any basic wireless application requirement.

•Compatible with IEEE 802.11b/g/n
•Wireless speed up to 150Mbps
•Compact and portable, small enough to take on the road
•Powered through a micro USB port by an external power adapter or USB connection to a computer
•Compatible with almost all 2.4GHz Wi-Fi devices
•Supports AP, Router, Client, Bridge and Repeater operation modes
•Supports WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
HARDWARE FEATURES
Interface 1 10/100Mbps WAN/LAN Port
1 Micro USB Port
1 Reset Button
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 2.2 x 2.2 x 0.7 in. (57 x 57 x18 mm)
Antenna Type On-Board
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 150Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
EIRP <20dBm (EIRP)
Reception Sensitivity 135M:-70dBm@10%PER
65M:-73dBm@10%PER
54M:-76dBm@10%PER
Wireless Modes AP Mode, Router Mode ,Client Mode,
Repeater Mode, Bridge Mode
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM,
Wireless Statistics
Wireless Security 64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
SOFTWARE FEATURES
WAN Type Dynamic IP/Static IP/PPPoE/
PPTP/L2TP
DHCP Server, Client, DHCP Client List,
Address Reservation
Quality of Service WMM, Bandwidth Control
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Access Control Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Management Access Control
Local Management
Remote Management
OTHERS
Certification CE, FCC, RoHS
Package Contents TL-WR702N
Power Adapter
USB Cable
Ethernet cable
Quick Installation Guide
Resource CD
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
