HARDWARE FEATURES

•Standards and Protocols: HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
•Interface: 2 x 10/100Mbps Ethernet Port
•Plug Type: EU, UK, US, AR
•Button: Pair, Reset, Wi-Fi/Wi-Fi Clone
•LED Indicator: PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
•Dimensions ( W x D x H ): 3.7 x 2.1 x 1.6 in. (94×54×40mm)
•Range: 300 Meters over electrical circuit
SOFTWARE FEATURES

•Modulation Technology: OFDM (PLC)
•Encryption:
?Powerline Security: 128-bit AES
?Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption
OTHERS

•Certification: CE, FCC, RoHS
•Package Contents:

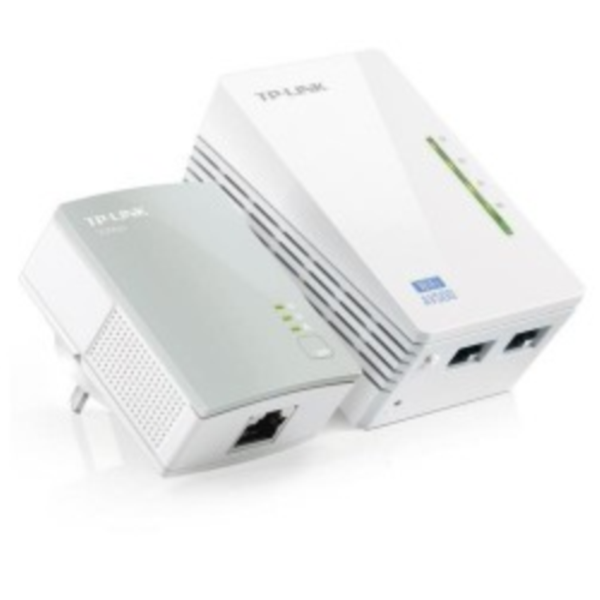

?Powerline Ethernet Adapter TL-WPA4220 & TL-PA4010
?6.5 ft. (2 m) Ethernet cable (RJ45)
?Resource CD
?Quick Installation Guide
•System Requirements:
?Windows 2000/XP/2003/Vista, Windows 7/8
?Mac, Linux
•Environment:
?Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
?Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
?Operating Humidity: 10% ~ 90% non-condensing
?Storage Humidity: 5% ~ 90% non-condensing
