Features

DURABLE. STABLE. RELIABLE.

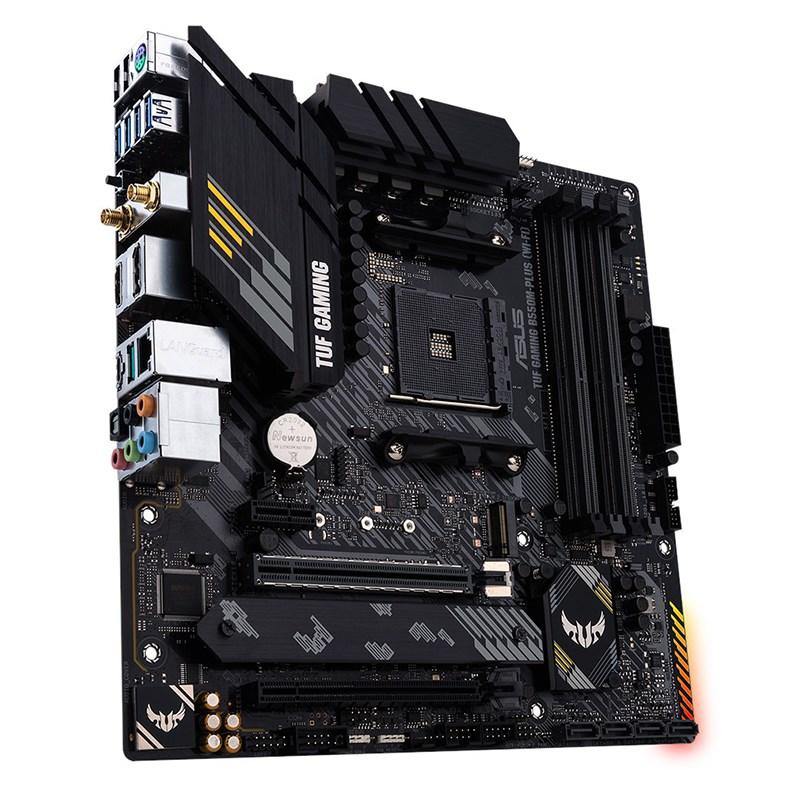

TUF Gaming B550M-Plus (Wi-Fi) distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance - an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.

ROCK-SOLID PERFORMANCE

With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF Gaming B550M-Plus (Wi-Fi) is the perfect foundation for your next high-core-count battle rig.

DrMOS

The onboard VRM of TUF Gaming B550M-Plus (Wi-Fi) utilizes 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and driver into a single package, delivering the power and efficiency that 3rd Gen AMD Ryzen™ Processors demand.

EASY PC DIY

TUF Gaming motherboards are designed to be easy to set up and configure just the way you want - even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.

Build with confidence

TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.

IMMERSIVE GAMING

TUF Gaming B550M-Plus (Wi-Fi) provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.

Intel® WiFi 6 AX200

The Intel® WiFi 6 AX200 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

 *Actual speed varies, and depends on networking conditions.

EXCLUSIVE 2.5 GIGABIT ETHERNET

2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.

Turbo LAN - NETWORK-OPTIMIZATION SOFTWARE FOR CUSTOMIZABLE PACKET PRIORITIZATION

Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface, and reduces network lag.

1. ONE CLICK TURBO

Adjust the network transmission priority by one click!

2. AUTO DETECT GAME LIST

Turbo Lan will detect every game in system, and add in list automatically.

Specifications

CPU

Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors *

* Refer to www.asus.com for CPU support list

Chipset

AMD B550

Memory

3rd Gen AMD Ryzen™ Processors

4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *

Next Generation AMD Ryzen PRO Processors

4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic

1 x DisplayPort 1.2

1 x HDMI 2.1(4K@60HZ)

Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

Expansion Slots

3rd Gen AMD Ryzen™ Processors

1 x PCIe 4.0 x16 (x16 mode)

AMD B550 Chipset

1 x PCIe 3.0 x16 (x4 mode) *1

1 x PCIe 3.0 x1 *1

* Support PCIe bifurcation for RAID on CPU function.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

3rd Gen AMD Ryzen™ Processors :

1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support

AMD B550 Chipset :

1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

4 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10

LAN

Realtek RTL8125B 2.5Gb Ethernet

TUF LANGuard

Wireless Data Network

Intel® Wi-Fi 6 AX200

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO

Supports up to 2.4Gbps max data rate

Supports dual band frequency 2.4/5 GHz

Supports channel bandwidth: HT20/HT40/HT80/HT160

Supports PCIe interface

Bluetooth

Bluetooth v5.1*

*BT 5.1 function will be ready in Windows 10 build 19041 or later.

Audio

Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

- Exclusive DTS Custom for GAMING Headsets.

- Optical S/PDIF out port(s) at back panel

- Audio cover

- Audio Shielding

- Dedicated audio PCB layers

- Premium Japanese audio capacitors

USB Ports

Rear USB Port ( Total 8 )

2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)

4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

2 x USB 2.0 port(s)(2 x Type-A)

Front USB Port ( Total 6 )

2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

4 x USB 2.0 port(s)(4 x Type-A)

Software Features

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- AI Noise Cancelling Microphone

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 2+

- EZ update

TUF GAMING CPU-Z

AI Charger

ASUS Turbo LAN

DAEMON Tools

DTS Custom for GAMING Headsets

Norton Anti-virus software (Free Trial for 60 days)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

ASUS Special Features

ASUS TUF PROTECTION

- ASUS DIGI+ VRM (Digital power design with Dr. MOS)

- ASUS Enhanced DRAM Overcurrent Protection

- ASUS ESD Guards

- TUF LANGuard

- ASUS Overvoltage Protection

- ASUS SafeSlot

- ASUS Stainless-Steel Back I/O

ASUS Q-Design

- ASUS Q-DIMM

- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- ASUS Q-Slot

ASUS Thermal Solution

- Aluminum M.2 heatsink

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Procool

AURA Sync

- Standard RGB headers

- Addressable Gen 2 RGB header

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)

1 x DisplayPort

1 x HDMI

1 x LAN (2.5G) port(s)

2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)

4 x USB 3.2 Gen 1 (blue) Type-A

2 x USB 2.0

1 x Optical S/PDIF out

5 x Audio jack(s)

1 x BIOS FlashBack™ Button(s)

1 x ASUS Wi-Fi Module

Internal I/O Ports

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

2 x Chassis Fan connector(s)

2 x Aura RGB Strip Headers

1 x Addressable Gen 2 header(s)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x SPI TPM header

4 x SATA 6Gb/s connector(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors

1 x Front panel audio connector(s) (AAFP)

1 x Clear CMOS jumper(s)

1 x System panel connector

1 x COM port header

1 x Speaker connector

Accessories

User's manual

I/O Shield

2 x SATA 6Gb/s cable(s)

1 x Supporting DVD

1 x TUF Gaming Sticker

1 x TUF Certification card(s)

1 x Wi-Fi moving antenna

1 x M.2 SSD screw package(s)

1 x M.2 Rubber Package(s)

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PXE

Operating System

Windows® 10 64-bit

Form Factor

mATX Form Factor

9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Note

*1 PCIEX16_2 will run x2 mode when PCIEX1 is used.
