Features

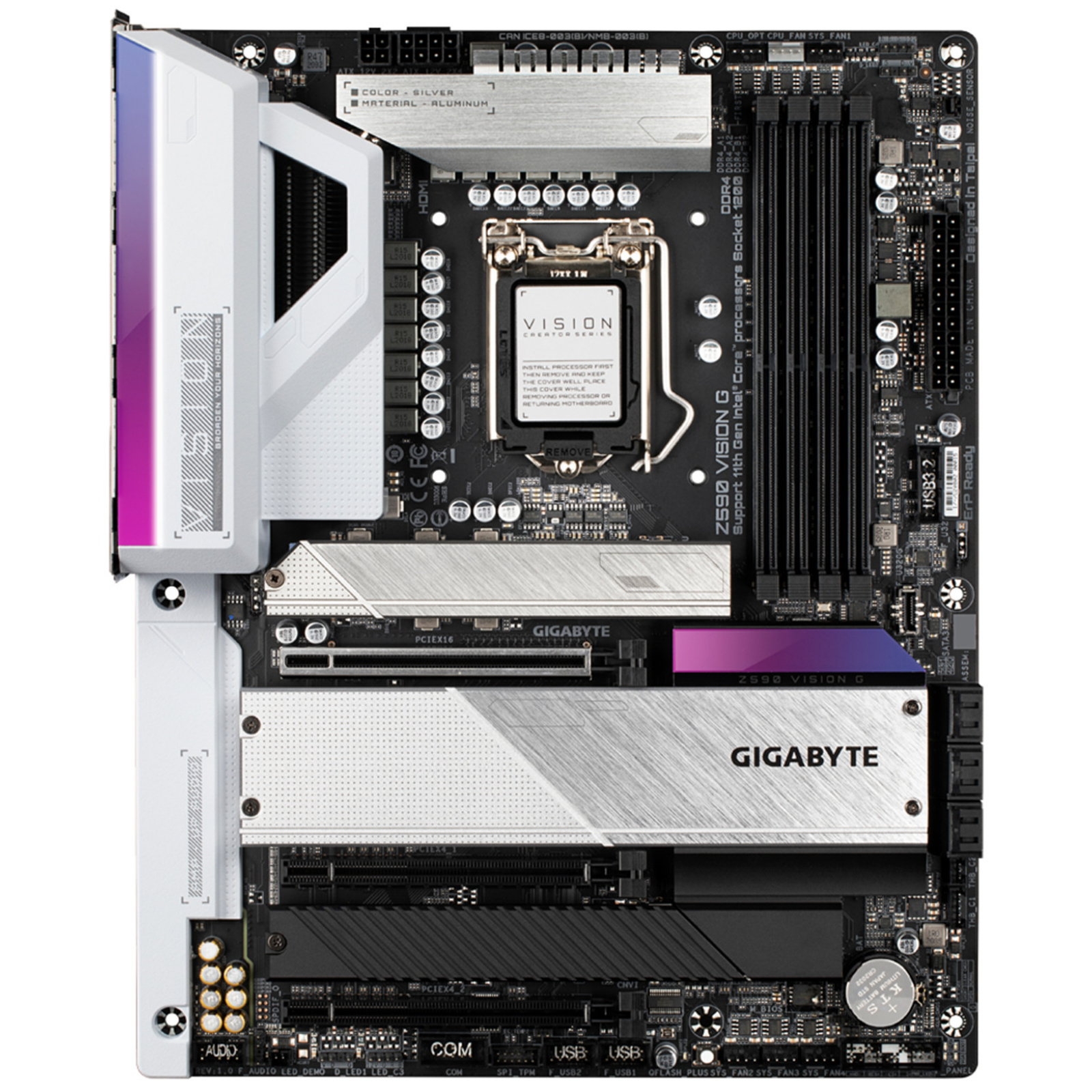

Intel® Z590 Creators Motherboard with unique VisionLINK I/O design, Effective thermal solution, Intel® 2.5GbE LAN, PCIe 4.0 x16 slot, Quad NVMe PCIe x4 M.2 Connectors, Front USB 3.2 Gen 2x2 Type-C® Header

- Powerful performance support 11th and 10th Gen Intel® Core™ series processors

- Dual Channel Non-ECC Unbuffered DDR4 memory, 4 DIMMs

- Go further without more cables by VisionLINK I/O design

- High-bandwidth and low-latency network support by Intel® 2.5GbE LAN

- Comprehensive connectivity by front and rear USB3.2 Gen 2x2 Type-C® connectors

- PCIe 4.0 hardware design and maximum memory capacity up to 128GB for empowering real-time workload

- 4 Ultra-Fast NVMe PCIe x4 M.2 connectors with unique thermal guards

- Effective cooling solution design for the better thermal dissipation

- Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration

- Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card

See The Passion of Creation - VISION Series

VISION Series motherboards are built for creator pc. It featured with reliable performance, impressive connectivity, expandable on graphics, and ultra-fast storage for creators to deal with heavy design workloads such as video editing and 3D rendering. It's the perfect fit for DIY creators to build their own ideal machine.



Go Further Without More Cables

GIGABYTE VisionLINK is an extension of your idea and creation. Transmitting data, video output, and power charging all through one USB Type-C® cable will simplify the user experience than ever. With seamless multitasking between your PC and devices, it lets you work like a pro.



All at One Cable that Does It All

Did you experience your pen display connecting to the PC with lots of cables? GIGABYTE VisionLINK lets you not only without cable clutter, but also the benefit of data, video, and power charging the same time. One USB Type-C® cable connected, turn your workspace into neat and tidy.



Add Graphic Power to You

Ever wondered if you can have a high-end graphic performance of your pen display? The DisplayPort™_In design provides the external graphic performance and the superior GPU ability for your pen display to use it. It brings your creation with incredible realism and performance.





DisplayPort™ Alternate Mode with USB Power Delivery

VisionLINK equips with the unique capability of data delivery, the DisplayPort Alternate Mode for the video signal, and 60W Power Delivery design for your devices charging. It's a perfectly tailored connectivity for creators and professional artists.



Intel® 2.5GbE Connectivity - High-Bandwidth and Low-Latency access.

The adoption of Intel® 2.5G LAN provides up to 2.5GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking. It gives an immediate boost to overall network performance and improves the bandwidth required at large file transfers, video editing, and performance workloads.

Intel® 2.5GbE Internet Networking



SuperSpeed USB 20Gbps - No Hassle Connection.

To feature the USB 3.2 Gen2x2 connectivity design, which is double performance than the current USB3.2 Gen2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. You can enjoy the ultimate connection flexibility to access and store massive amounts of data rapidly.

Front-panel header with USB 3.2 Gen2X2 connectivity is ready for compatible devices.



Full PCIe 4.0 Design*

For most prosumers and content creators, high bandwidth storage and high performance graphics card or accelerator cards are critical for their projects. This is especially true for 3D rendering and creating high resolution textures. To support most cutting edge devices, this motherboard support variety of PCIe 4.0 devices, including graphics card and M.2 SSD.

*Product uses PCIe 4.0 grade material, actual support varies by hardware configuration.



PCIe Bandwidth*

Up to 31.58GB/s from new PCIe 4.0 x16 slot designs for the next generation add on cards need tremendous bandwidth, including the graphics card, deep learning accelerator card, and the video capture card.

SSD Read Speed

Content creators workflows constantly involve huge files, such as images, videos, and 3D models. Time for editing, saving, and transferring those huge files can be substantially reduced with the new generation PCIe 4.0 SSD.



Single 32GB Support - Bring your tasks without lag.

The maximum memory capacity on the Z590 motherboard is 128GB with the single slot supports up to 32GB. You can experience fast performance while working on complex design tasks, and getting real-time results.



Quad PCIe M.2 - Faster Speed. More Space.

Z590 VISION G equips with up to 4 PCIe M.2 slots, delivering superior bandwidth and upgrading your storage capacity for accelerating your workflows. M.2 PCIe SSD gives you 7X faster data transferring experience compared to 2.5" SATA solid state drives. Enable the creativity to flow from thought to draft faster and get responsive performance without a wait.



NVMe PCIe x4 M.2

GIGABYTE M.2 solution offers considerably high storage performance and provides ideal storage with RAID modes. To feature with 3 full-speed PCIe 4.0* M.2 connectors to deliver the blazing-fast storage available. Offering the best configuration in terms of NVMe storage for creators who demand high capacity, fast storage options, and complex 3D model rendering.

* Product uses PCIe 4.0 grade material, actual support varies by hardware configuration.

* Once PCIe M.2 SSD is populated in any of the middle two M.2 connectors, the PCIe 4.0 x16 slot operates at up to x8 bandwidth.



Creates Exclusive Storage Performance

Exclusive triple NVMe PCIe 4.0* x4 M.2 design offers ultra-fast storage performance in RAID 0 support. You can easily handle the most data-intensive tasks by this configuration.



Cooling Technology

An effective cooling solution is essential for a heavy design workload to get away with slowdown, crashes, and unexpected shutdown. To reach a perfect balance between style and performance by implementing the Fins-Array heatsink and Direct Touch Heatpipe. Not only increasing the heat dissipation surface to ensure the stability during creative work but with a stylish aesthetic.



M.2 Thermal Guard

GIGABYTE provides an Ultra-Efficient thermal solution for the latest PCIe 4.0 M.2 SSD drives. The unique M.2 Thermal Guard prevents all the M.2 SSD from thermal throttling and dissipates heat before it becomes an issue.



Smart Fan 6

Numerous hybrid fan headers and temperature sensors are planted on the motherboard to monitor in real time and configure fan mode to fit different workloads via Smart Fan 6. Creators are allowed to set the trigger point to activate the fan and its corresponding speed. The fan completely stops when performing light tasks to avoid noise.

Specifications

CPU

LGA1200 package:

11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors

10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*

* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.

L3 cache varies with CPU

(Please refer to "CPU Support List" for more information.)

Chipset

Intel® Z590 Express Chipset

Memory

11th Generation Intel® Core™ i9/i7/i5 processors:

Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules

10th Generation Intel® Core™ i9/i7 processors:

Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:

Support for DDR4 2666/2400/2133 MHz memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

1 x USB Type-C® port, supporting USB Type-C® and DisplayPort video outputs and a maximum resolution of 4096x2304 @ 60 Hz.

* Support for drawing tablets and 20V @ 3A of power delivery.

*Support for DisplayPort 1.2 version and HDCP 2.3

1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 30 Hz

* Support for HDMI 1.4 version and HDCP 2.3.

(Supported graphics specifications may vary depending on CPU or graphics card used.)

Audio

Realtek® ALC4080 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

* The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors.

* The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.

(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*

*Supported by 11th Generation processors only.

2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)

(The PCIEX4 slot conforms to PCI Express 3.0 standard.)

Multi-Graphics Technology

Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Storage Interface

CPU:

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*

2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0* x4/x2 SSD support) (M2B_CPU)(M2C_CPU)

*Supported by 11th Generation processors only.

Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel® Optane™ Memory Ready

USB

Chipset:

2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)

1 x USB Type-C® port on the back panel, with USB 3.2 Gen1 support

2 x USB 3.2 Gen2 Type-A ports (red) on the back panel

2 x USB 3.2 Gen1 ports available through the internal USB header

2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 3.2 Gen1 Hub:

4 x USB 3.2 Gen1 ports on the back panel

Chipset+USB 2.0 Hub:

4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

6 x SATA 6Gb/s connectors

4 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)

2 x Thunderbolt™ add-in card connectors

1 x serial port header

1 x Clear CMOS jumper

1 x Q-Flash Plus button

1 x noise detection header

Back Panel Connectors

2 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

4 x USB 3.2 Gen 1 ports

1 x DisplayPort In port

1 x HDMI port

2 x USB 3.2 Gen2 Type-A ports

1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

1 x USB Type-C® port, with USB 3.2 Gen 1 support

1 x RJ-45 port

6 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

Noise detection

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

EasyTune

Fast Boot

Game Boost

ON/OFF Charge

RGB Fusion

Smart Backup

System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Bundled Software

Norton® Internet Security (OEM version)

cFosSpeed

Operating System

Support for Windows 10 64-bit

Form Factor

ATX Form Factor; 30.5cm x 24.4cm
