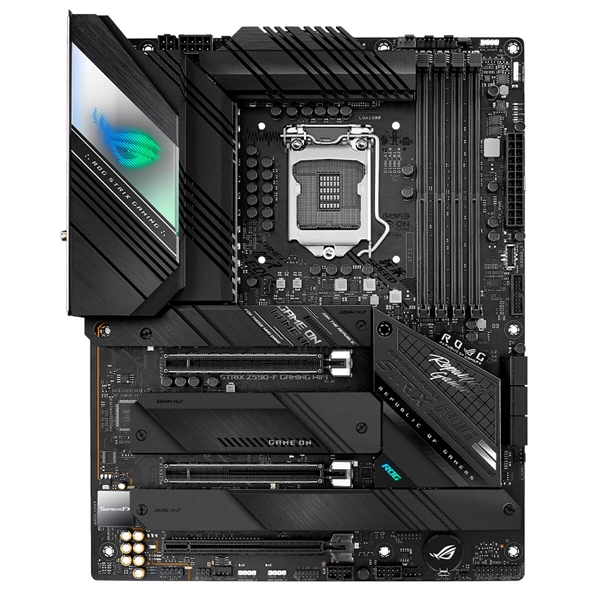

ASUS ROG STRIX Z590-F GAMING WIFI Motherboard
$569.00 Gst Inclusive
Product Code: 113304
Availability: Out of Stock
Call us: 09-6256826 09-6258886

Warranty: Three Months RTB Warranty
Manufacturer Url: Asus

0 reviews :

Features





POWER DESIGN



Digital power control and an array of power stages provide the muscle needed to control the latest Intel CPUs.







TEAMED POWER STAGES



14+2 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.







ALLOY CHOKES AND CAPACITORS



Superior chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.







PROCOOL II POWER CONNECTOR



The ASUS ProCool II socket is built to tight specifications to ensure flush contact with the PSU power lines. Metal armor improves heat dissipation, and lower impedance helps prevent hotspots and improves reliability.







DIGI+ POWER CONTROL



The built-in Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.









Optimem II



ROG Strix Z590-F Gaming WiFi supports up to 128 GB DDR4 memory across four slots. OptiMem II technology improves trace layout to significantly reduce vias and crosstalk, enhancing memory stability and compatibility while giving memory kits higher frequency margins.







M.2 Q-Latch



The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.







Clr CMOS Button



A quick press of the Clr CMOS button helps reset BIOS settings. It can also be used to reboot the PC if incorrect BIOS settings have been selected.







BIOS FlashBack™



BIOS FlashBack™ is the simplest and safest way to update BIOS. Simply drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, and plug it into the USB BIOS FlashBack port and press the button. Updates can even be performed without having memory or a CPU installed.









PCIe 4.0-Ready



ROG Strix Z590-F Gaming WiFi features four onboard M.2 slots, two of which support the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available with the latest Intel processors. An M.2 backplate helps deal with the heat generated by the PCIe 4.0 SSDs. In addition, three of the M.2 slots support up to a 22110 socket and NVM Express® RAID.







ROG SUPREMEFX



ROG SupremeFX is a unique blend of hardware and software that provides superior audio. In ROG Strix Z590-F Gaming WiFi, this combination features the ALC4080 codec with a Savitech amplifier to deliver pristine audio, increasing playback resolution from 192 kHz to 384 kHz and also decreasing distortion and reducing signal interference from surrounding components.







FlexKey



FlexyKey makes it possible to redefine the role of the chassis reset button. Assignable options include quick Aura lighting control, booting directly into UEFI, or performing a safe boot to recover settings.







Pre-Mounted I/O Shield



The patented ROG I/O shield is finished in sleek matte black and comes pre-mounted, which further simplifies the process of installing the motherboard.









Intel WiFi 6E (802.11 ax)



Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.







*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi. Learn more about the ASUS WiFi 6 ecosystem.







Intel 2.5 Gb Ethernet



Onboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.







Integrated I/O Cover and VRM Heatsinks



Connected by an L-shaped heat pipe, the two VRM heatsinks feature strakes to increase surface area for improved heat dissipation. Both heatsinks also integrate a high-surface-area aluminum I/O cover which helps dissipate heat.







Thermal Pads



High-quality thermal pads efficiently transfer heat from the inductor and phase array to the heatsink.







M.2 Heatsinks



The M.2 heatsinks keep the M.2 SSD at optimum operating temperature for consistent performance and reliability.







M.2 Backplate



An integrated M.2 backplate helps ensure that high-performance drives deliver peak performance, even when airflow is restricted.







TWO-WAY AI NOISE CANCELATION



This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.





Specs



Generic



CategoryMotherboards - Intel



BrandASUS



Part NumberROG STRIX Z590-F GAMING WIFI



Warranty3-Year Warranty



Processor



SocketLGA1200



Memory



Memory Capacity128 GB



Max. Memory Speed5133 MHz



Max. Memory Slots4



TypeDDR4



Storage



M.2 Support4x M.2 Ports with PCIe 4.0/PCIe 3.0 or SATA modes



M.2 Slots4



SATA Ports6



Motherboard Features



ChipsetIntel Z590



AMD CrossfireNo



NVIDIA SLINo



OverclockingYes



Form FactorATX



Audio CodecROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080



Wireless Connectivity



BluetoothBluetooth 5.2



WiFiIntel Wi-Fi 6E AX210



WiFi StandardsWiFi 6 - 802.11ax



Internal Connectors



USB 3.2 Gen 1 Headers1



USB 3.2 Gen 2 Headers1



USB 2.0 Headers2



PCIe x16 Slots3



PCIe x4 Slots0



PCIe x1 Slots0



External I/O



USB Ports - Type C2



USB Ports - Type A8



BIOS Flashback ButtonYes



Lan2.5 Gb/s



Audio Output7.1



Optical S/PDIFYes



Clear CMOS ButtonYes
