Features

DESIGN CONCEPT

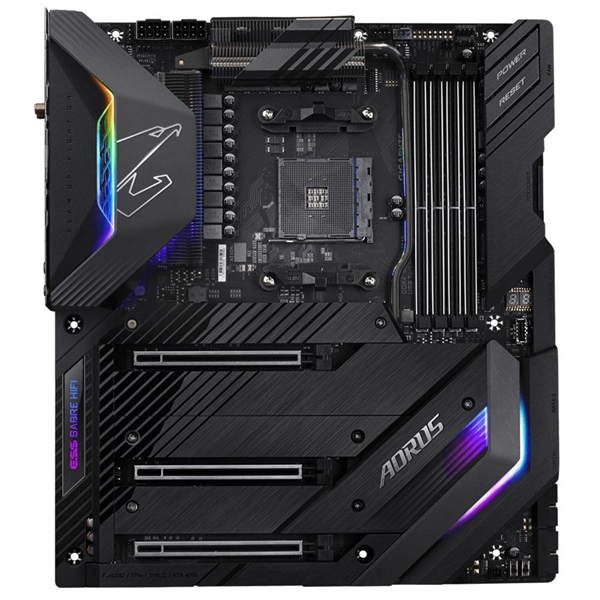

Innovative design, cutting-edge function, state-of-art aesthetics, sophisticated thermal design, next generation network connection ,Hi-Fi level audio system. X570 AORUS XTREME is the new definition of flagship motherboard.

GET READY FOR AMD RYZEN™ 3000-SERIES

GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for 3rd Gen AMD Ryzen™ Processors. The all-new design is a testament to GIGABYTE's dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0 and USB Type-C™ interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WIFI design, to fulfill users' performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 3000-series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.

AMD StoreMI Technology

GIGABYTE X570 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

Extreme Power Design

To unleash the full potential of the 3rd Generation of AMD Ryzen™ CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, X570 AORUS XTREME is a true beast among motherboards.

THERMAL REACTIVE ARMOR

X570 AORUS XTREME uses some unprecedented and innovative thermal design to ensure CPU, Chipset, SSD stability and low temperature under full loading application and gaming.

Unparalleled Performance

Hungry for better performance? X570 AORUS XTREME has full PCIe 4.0 design, supports high frequency memory, and full SSD thermal guard to make sure you get the maximum full system performance.

Next Generation Connectivity

A Flagship product needs to be future-proof so your system stays up-to-date with the latest technology. X570 AORUS XTREME provides all next generation network, storage, and WIFI connectivity to keep you up to speed.

Definitive Aesthetics

GIGABYTE ID team designs X570 AORUS XTREME from the drawing board. After countless hours of conceptualizing ideas, fine tuning details and engaging in discussion, GIGABYTE has produced a board that is equal parts beast and beauty.

Hi-Fi Audio System- As a Built-in Sound Card

For Hi-Fi Audio Solution, can be grouped into 2 parts. Audio Signal Process, not distorted digital signal go through ESS 9218 Sabre DAC for Digital/Analog converter with 130dB SNR, 112dB THD+N and supports higher impedance up to 600 Ω headphone. Further, audiophile grade capacitor and gold plated audio jack ensures the non-compensated audio performance. Audio Signal Optimization, TXC Oscillator provides precise time triggers to Digital-Analog Converters. WIMA Capacitors to deliver crystal and balanced sound.

Ultra Durable

GIGABYTE is reputable for its durability and high quality manufacturing process. Needless to say, we use the best components we can find on the X570 AORUS XTREME and reinforce every slot to make each of them solid and durable.

GIGABYTE BIOS & APP CENTER

GIGABYTE is famous for its durability and high quality manufacture process, needless to say, we use the best components we can find on X570 AORUS XTREME and reinforce on every slot to make it solid durable.

Specs

Generic

UPC889523018309

CategoryMotherboards - AMD

BrandGigabyte

Part NumberX570 AORUS XTREME

Warranty3-Year Warranty

Processor

SeriesMatisse

GenerationZen 2

SocketAM4

Memory

Memory Capacity128 GB

Max. Memory Speed4400 MHz

Max. Memory Slots4

TypeDDR4

Storage

M.2 Support3x M.2 Ports with PCIe 4.0 x4 or SATA modes

M.2 Slots3

SATA Ports6

Motherboard Features

ChipsetAMD X570

AMD CrossfireYes

NVIDIA SLIYes

OverclockingYes

Form FactorEATX

Audio CodecRealtek ALC1220-VB codec

Wireless Connectivity

BluetoothYes

WiFiYes

WiFi StandardsWiFi 6 - 802.11ax

Internal Connectors

USB 3.2 Gen 1 Headers2

USB 3.2 Gen 2 Headers1

USB 2.0 Headers1

PCIe x16 Slots2

PCIe x4 Slots1

PCIe x1 Slots0

External I/O

USB Ports - Type C1

USB Ports - Type A11

BIOS Flashback ButtonNo

LAN10 Gb/s

Audio Output7.1

Optical S/PDIFNo

Clear CMOS ButtonNo
