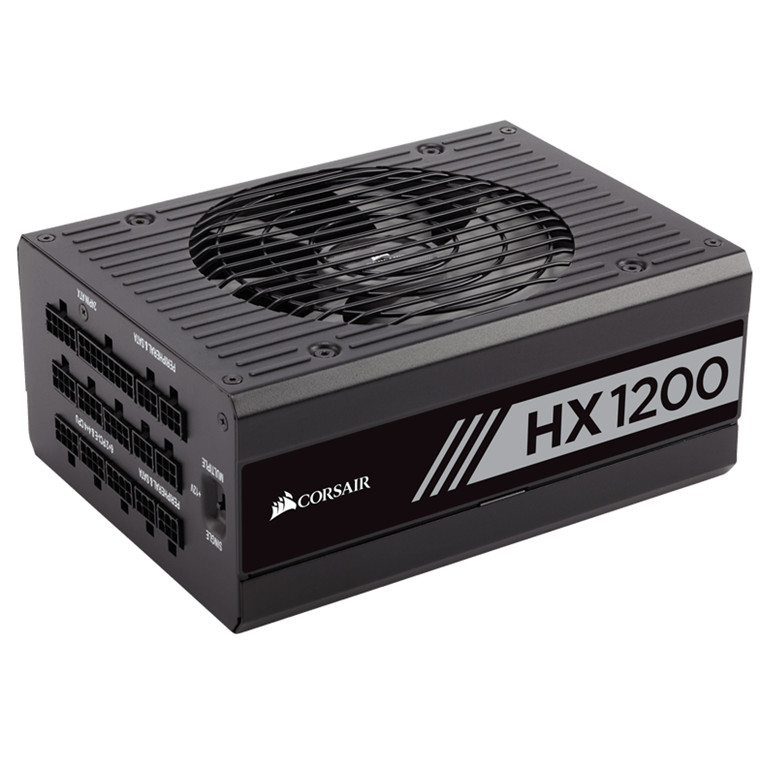

CORSAIR HX1200 1200W 80PLUS PLATINUM HIGH PERFORMANCE POWER SUPPLY

Platinum efficiency, fully modular and virtually silent



CORSAIR HX series power supplies give you extremely tight voltage regulation, quiet operation, Platinum-certified efficiency, and a fully modular cable set. Built with all Japanese 105°C capacitors, they're a great choice for high performance PCs where reliability is essential.









Quiet, efficient operation



80 PLUS Platinum efficiency reduces operating cost and excess heat, and Zero RPM fan mode ensures virtual silence at low and medium loads.





100% Japanese 105°C capacitors



Premium internal components ensure solid power delivery and long term reliability.









Zero RPM Fan Mode



Since the fan doesn't turn on until it's needed, you'll enjoy virtually silent operation at low and medium loads









Power In Your Hands



Toggle single +12V rail or multi +12V rail mode. In the "SINGLE" position, the full output capability of the power supply's +12V rail is available to any and all connectors, while in the "MULTIPLE" position, each individual connector has Over-Current Protection so no more than 40A of current can be delivered on any given cable.

Specifications

Weight

2.3kg

80 Plus

Platinum

Power

1200 Watts

Fanless mode

Yes

Fan bearing technology

Fluid Dynamic Bearing

Fan size (mm)

135mm

C-Link Digital

No

Continuous output rated temperature (°C)

50°C

Dimensions

150mm x 86mm x 200mm

Modular

Fully

Sleeved cables

Low-Profile, All Black

ATX Connector

1

EPS Connector

2

Floppy Connector

1

Four Pin Peripheral Connector

8

PCIe Connector

8

SATA Connector

16
