Go big, do more

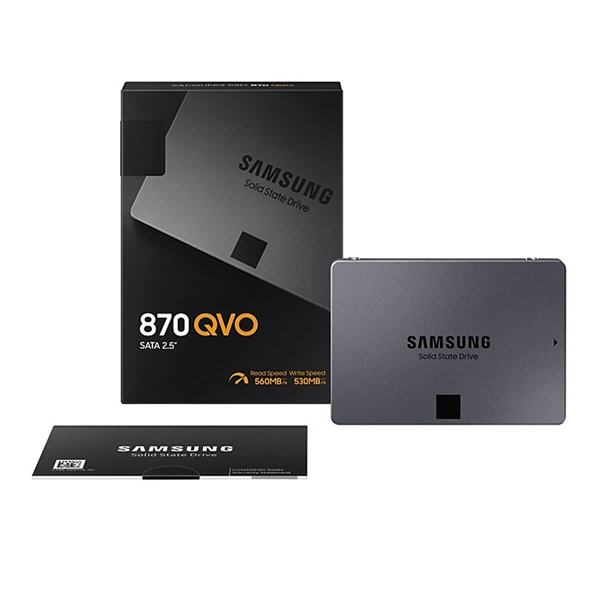

The 870 QVO is Samsung's latest 2nd gen. QLC SSD and the largest of its kind that provides up to 8TB of storage*. It offers an incredible upgrade for everyday PC users who want to ramp-up their desktop PC or laptop to the largest available storage in the market without compromising on performance.

*8TB is the largest Client SATA SSD as of its release date.



Enhanced in everyway

Achieving the maximum SATA interface limit of 560/530 MB/s sequential speeds, the 870 QVO features improved random speed and sustained performance compared to the previous 860 QVO*. Intelligent TurboWrite accelerates write speeds and maintains long-term high performance with a larger variable buffer.

*Performance may vary based on SSD's firmware version and system hardware & configuration. Random performance improved up to 13% in QD1 Random read. Sustained random write performance improved up to 31%. Test system configuration : Intel® Core i7-7700k CPU@4.20GHz, DDR4 1200MHz 32GB, OS -Windows 10 Pro 64bit, Chipset - ASUS-PRIME-Z270-A.



Enjoy max capacity

The 870 QVO is available in 8TB, 4TB, 2TB and 1TB, and the 8TB* model is by far the largest client SATA SSD. With the 870 QVO, users can now enjoy and thrive in the largest SSD computing environment ever with an approachable price.

*1GB=1,000,000,000 bytes by IDEMA. A certain portion of capacity may be used for system file and maintenance use,so the actual capacity may differ from what is indicated on the product label. Available dates may differ by capacity.



Reliable and sustainable

The groundbreaking capacity of the 870 QVO doubles its reliability up to 2,880 TBW compared to the previous model 860 QVO and is backed by a limited warranty of 3 years*. This formidable SSD provides further reliability with a refined ECC** algorithm that enables a stable performance.

*TBW : Terabytes Written. Warrantied TBW : 360 TBW for 1TB model, 720 TBW for 2TB model, 1,440 TBW for 4TB model, and 2,880 TBW for 8TB model. Limited warranty of 3-years or TBW, whichever comes first. For more information on warranty, please visit www.samsung.com.au/support/warranty ('Storage') or please find the enclosed warranty statement in the package.**ECC: Error Correction Code



Upgrade with ease

Upgrading to the 870 QVO is made easy for anyone with a desktop PC or laptop that supports a standard 2.5-inch SATA form factor. Enjoying this terabyte SSD is as convenient as plugging in the 870 QVO into a SATA slot, and letting the renewed migration software take care of the rest.



Samsung Magician software

Make your drive work like magic. The new and improved Samsung Magician 6.1 software will keep your SSD in check. You can easily manage your drive with a wide range of useful tools to keep up with the latest updates, monitor the drive's health and status, or even enhance its performance.



World's No.1* Flash Memory Seller

Experience the superior performance and reliability that you can only get from the world's number one* brand for flash memory since 2003. All firmware and components, including Samsung's world-renowned DRAM and NAND are produced in-house, allowing end-to-end integration for quality you can trust.





Specifications



General Feature

Application

Client PCs

Capacity

8,000 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Form Factor

2.5 inch

Interface

SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface

Dimension (WxHxD)

100 X 69.85 X 6.8 (mm)

Weight

Approx. 46.0g Weight

Storage Memory

Samsung V-NAND 4bit MLC

Controller

Samsung MKX Controller

Cache Memory

Samsung 1 GB Low Power DDR4 SDRAM

Special Feature

TRIM Support

TRIM Supported

S.M.A.R.T Support

S.M.A.R.T Supported

GC (Garbage Collection)

Auto Garbage Collection Algorithm

Encryption Support

AES 256-bit Encryption (Class 0),TCG/Opal, IEEE1667 (Encrypted drive)

WWN Support

World Wide Name supported

Device Sleep Mode Support

Yes

Performance

Sequential Read

Up to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration

Sequential Write

Up to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated

Random Read (4KB, QD32)

Up to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated

Random Write (4KB, QD32)

Up to 88,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated

Random Read (4KB, QD1)

Up to 11,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated

Random Write (4KB, QD1)

Up to 35,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated

Environment

Average Power Consumption (system level)

Average: 2.2 W *Maximum: 4.0 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle)

Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration

Allowable Voltage

5V ± 5% Allowable voltage

Reliability (MTBF)

1.5 Million Hours Reliability (MTBF)

Operating Temperature

0 - 70 ? Operating Temperature

Shock

1,500 G & 0.5 ms (Half sine)

Software

Management SW

Magician Software for SSD management
