Features

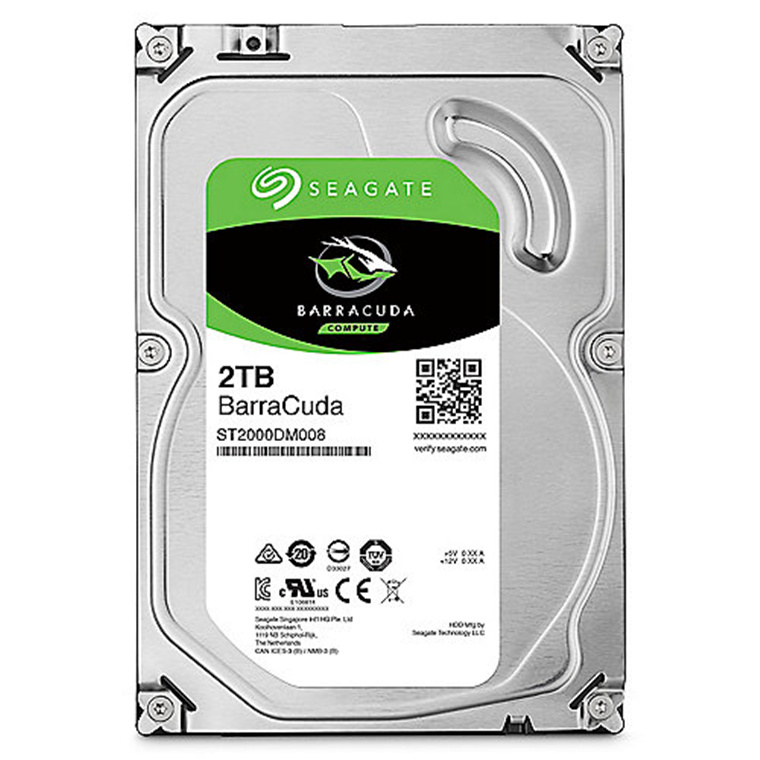

Seagate brings over 20 years of trusted performance and reliability to the Seagate® BarraCuda® 3.5-inch HDD-now available in capacities up to 8TB.
Best-Fit Applications
- Desktop or all-in-one PCs
- Home servers
- Entry-level direct-attached storage
- devices (DAS)
Key Advantages
Versatile
HDDs for all your PC needs bring you industry-leading excellence in personal computing.
For over 20 years
The BarraCuda family has delivered super-reliable storage for the hard drive industry.
Capacities
Up to 8TB for desktops, BarraCuda leads the market with the widest range of storage options available.
Advanced
Power modes help save energy without sacrificing performance.1
SATA 6Gb/s
Interface optimizes burst performance.1
Seagate Secure
®models provide Self-Encrypting Drive (SED) hardware-based data security and deliver an Instant Secure Erase feature for safe, fast and easy drive retirement. They meet NIST 800-88 media sanitization specifications and also support the Trusted Computer Group (TCG) Opal standard.2,3
Specifications
Bytes per Sector
4096
Heads/Disks
2/1
Performance
Interface
SATA 6Gb/s
SATA Transfer Rates Supported (Gb/s)
6.0/3.0/1.5
Max. Sustained Transfer Rate OD(MB/s)
220MB/s
Cache, Multisegmented (MB)
256
Reliability/Data Integrity
Load/Unload Cycles
300,000
Nonrecoverable Read Errors per Bits Read, Max
1 per 10E14
Power-On Hours per Year (24×7)
2400
Workload Rate Limit (TB/Year)
55
Limited Warranty (years)
2
Power Management
Startup Power (A)
2.0
Operating Mode, Typical (W)
4.3
Idle Average (W)
3.0W
Standby Mode/Sleep Mode, Typical (W)
0.3/0.3
Voltage Tolerance, Inc. Noise (5V)
±5%
Voltage Tolerance, Inc. Noise (12V
±10%
Environmental/Temperature
Operating (ambient, min)
0°C
Operating (drive case, max)
60°C
Nonoperating (ambient)
-40°C - 70°C
Halogen Free
Yes
RoHS Compliance
Yes
Physical
Height (mm/in, max)
20.20mm/0.795in
Width (mm/in, max)
101.85mm/4.010in
Depth (mm/in, max)
146.99mm/5.787in
Weight (g/lb)
415g/0.915lb
Carton Unit Quantity
25
Cartons per Pallet/Cartons per Layer
40 / 8
