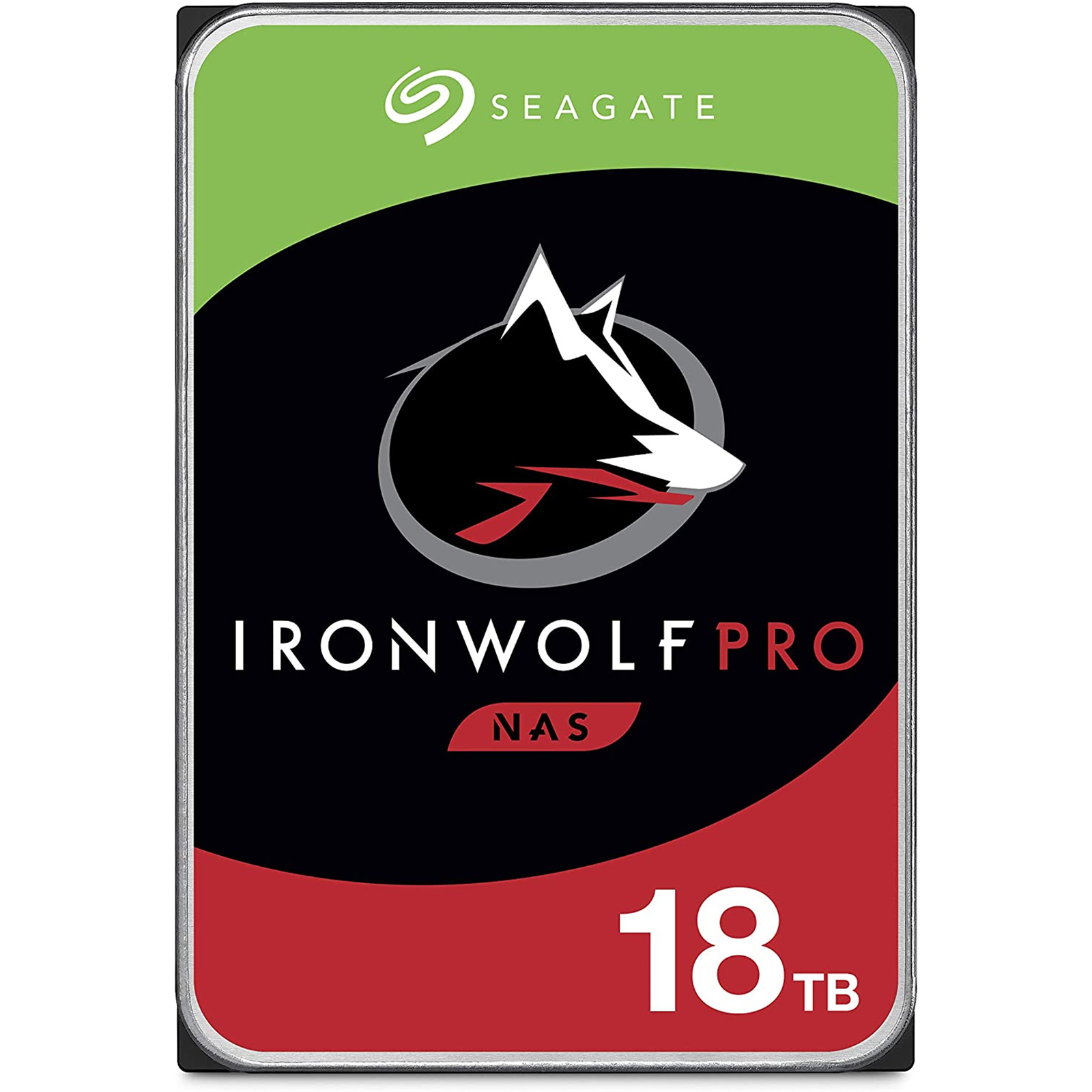

Dependable. Powerful. Always Accessible.
NAS-optimized IronWolf Pro hard drives are built for multi-user NAS environments, high workload rates, and enhanced with CMR technology & AgileArray firmware for 24x7 optimal reliability and system scalability.
BUILT FOR NAS
300TB/year user workload rate, optimized to run in network attached storage 24x7.
DRIVE HEALTH MONITORING
Provides prevention, intervention, and recovery with compatible NAS to monitor drive health.
NAS-OPTIMIZED PERFORMANCE
AgileArray firmware coupled with built-in rotational vibration sensors provide reliable storage for NAS with little lag or down time, even during the heaviest of workloads.
DATA PROTECTION
Three years of Rescue Data Recovery Services protecting against unexpected data loss from power outages, natural disasters, user error, viruses, and more.
Connected Home
Manage all of your data backup and streaming media needs.
Creative Professionals
Handle collaborative projects and workloads.
Business Environments
IronWolf drives help to define business resilience and continuity with IronWolf Health Management.
Specifications
Heads
18
Disks
9
Bytes per logical sector
512
Bytes per physical sector
4096
Recording density, KBPI (Kb/in max)
2470
Track density, KTPI (ktracks/in avg.)
482
Areal density, (Gb/in2 avg)
1146
Spindle speed (RPM)
7200
Internal data transfer rate (Mb/s max)
2899
Sustained data transfer rate OD (MiB/s max)
247
(260 MB/s max)
I/O data-transfer rate (MB/s max)
600
ATA data-transfer modes supported
PIO modes 0-4
Multiword DMA modes 0-2
Ultra DMA modes 0-6
Cache buffer
256MB (262,144KB)
Weight (maximum)
670g (1.477 lb)
Average latency
4.16ms
Power-on to ready (sec) (typ/max)
25/30
Standby to ready (sec) (typ/max)
25/30
Startup current (typical) 12V (peak)
2.0A
Voltage tolerance (including noise)
5V ± 5%
12V ± 10%
Operating temperature† (Drive Reported Temperature)
5° to 65°C
Non-Operating temperature
-40° to 70°C (Ambient Temperature, see sections 2.6.1 and 2.14)
Temperature gradient (°C per hour max)
20°C (operating)
20°C (nonoperating)
Relative humidity*
5% to 95% (operating)
5% to 95% (nonoperating)
Relative humidity gradient
20% per hour max
Altitude, operating
-304.8 m to 3,048 m
(-1000 ft to 10,000+ ft)
Altitude, nonoperating (below mean sea level, max)
-304.8 m to 12,192 m
(-1000 ft to 40,000+ ft)
Operational Shock (2 ms)
50 Gs
Non-Operational Shock (2 ms)
200 Gs
Linear Random Operating Vibration
5-500 Hz: 0.70 Grms
Random Rotary Operating Vibration
20-1500Hz: 12.5 rads/s²
Linear Random Non-Operating Vibration
2-500 Hz: 2.27 Grms
Drive acoustics, sound power (bels)
Idle:
2.8 (typical)
3.0 (max)
During periods of drive idle, some offline activity may occur according to the SMART specification, which may increase acoustic and power to operational levels.
Performance seek:
3.2 (typical)
3.4 (max)
Nonrecoverable read errors
1 sector per 10^15 bits read
Annualized Failure Rate (AFR)*
0.73% based on 8760 POH
Maximum Rated Workload*
Maximum rate of <300TB/year
Workloads exceeding the annualized rate may degrade the drive MTBF and impact product reliability. The Annualized Workload Rate is in units of TB per year, or TB per 8760 power on hours.
Workload Rate = TB transferred * (8760 / recorded power on hours).
Load-unload cycles
600,000
Supports Hotplug operation per Serial ATA Revision 3.3 specification
Yes
Notes
* One GB equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting.
* See Section 2.10, "Reliability" for rated MTBF device operating condition requirements
