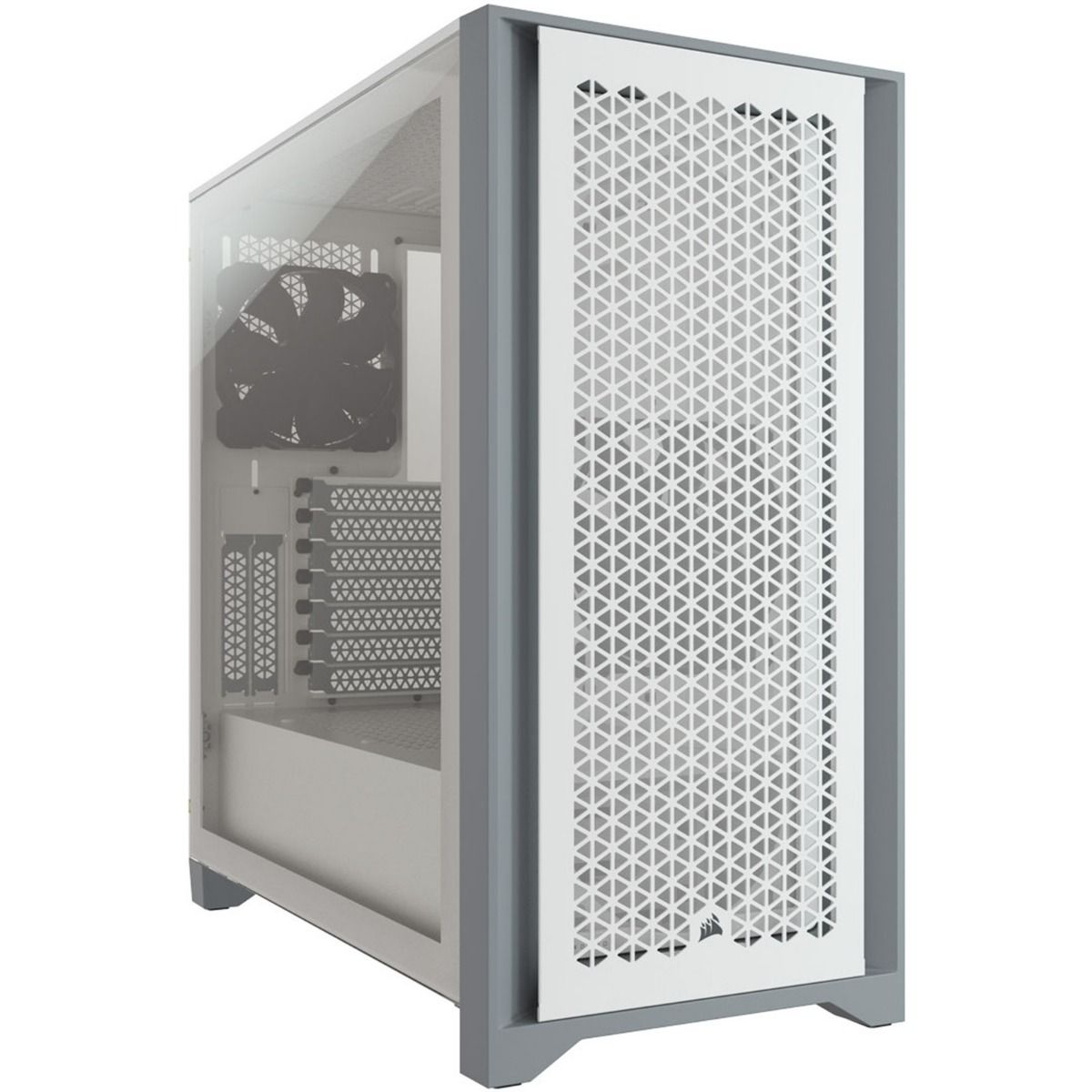

4000D AIRFLOW MID-TOWER ATX CASE

A CLEAN START TO A GREAT BUILD

With enhanced ventilation, the 4000D Airflow provides outstanding system airflow in a stylish package. Building your dream PC has never been easier when you start here.

WATCH VIDEO

HIGH-AIRFLOW FRONT PANEL

An optimized front panel delivers massive airflow to your system for maximum cooling.

CORSAIR RAPIDROUTE CABLE MANAGEMENT

Route your major cables through a single channel, with a roomy 25mm of space behind the motherboard for all of your cables, making a clean looking build easier than ever.

POWERFUL DIRECTED AIRFLOW

Equipped with two CORSAIR 120mm AirGuide fans, utilising anti-vortex vanes to concentrate airflow and enhance cooling.

UNLIMITED

POSSIBILITIES

Build it how you want today, with an easy upgrade path for tomorrow.

EXTREME COOLING POTENTIAL

A spacious interior fits up to 6x 120mm or 4x 140mm cooling fans, along with multiple radiators including a 360mm in front and 280mm in the roof.

DIMENSIONS

Compact yet efficient, the 4000D AIRFLOW has excellent potential for expansion without being cumbersome.

FAN CAPACITY

Fan mounts feature wider cutouts, allowing fan placement customization and flexibility.

RADIATOR CAPACITY

Plenty of room for a roof radiator and fans without contacting your high-end memory modules.

ALL THE STORAGE YOU NEED

Fits up to 2x 2.5in SSDs and 2x 3.5in HDDs, with relocatable SSD trays that can be moved to the front PSU cover.

VERTICAL GPU MOUNT READY

With included vertical PCIe slots and a screw mount for a CORSAIR PCI-Express 3.0 extension cable (sold separately) you can show off your GPU and keep it secure at the same time.

PUT YOUR CONNECTIONS WITHIN EASY REACH

The modern front panel I/O panel includes a USB 3.1 Type-C Port, USB 3.0 port, and a combination audio/microphone jack.

EASY SLIDE-ON, SLIDE-OFF SIDE PANEL

Show off your high-profile components and RGB lighting with an easy slide-on, slide-off attach method.

SPECIFICATIONS

Case Dimensions

453mm x 230mm x 466mm

Maximum GPU Length

360mm

Maximum PSU Length

180mm (220mm if HDD cage removed)

Maximum CPU Cooler Height

170mm

Case Expansion Slots

7+2 vertical

Case Drive Bays

(x2) 3.5in (x2) 2.5in

Case Form Factor

Mid-Tower

Case Windowed

Tempered Glass

Case Warranty

Two years

iCUE enabled

No

Colour

White

Case Material

Steel, Tempered Glass, Plastic

Radiator Compatibility

120mm, 140mm, 240mm, 280mm, 360mm

Compatible Corsair Liquid Coolers

H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i

Case Power Supply

ATX (not included)

Weight

7.8kg / 17.20lbs

Case Drive Bays 3.5"

2

Case Drive Bays 2.5"

2
