Features

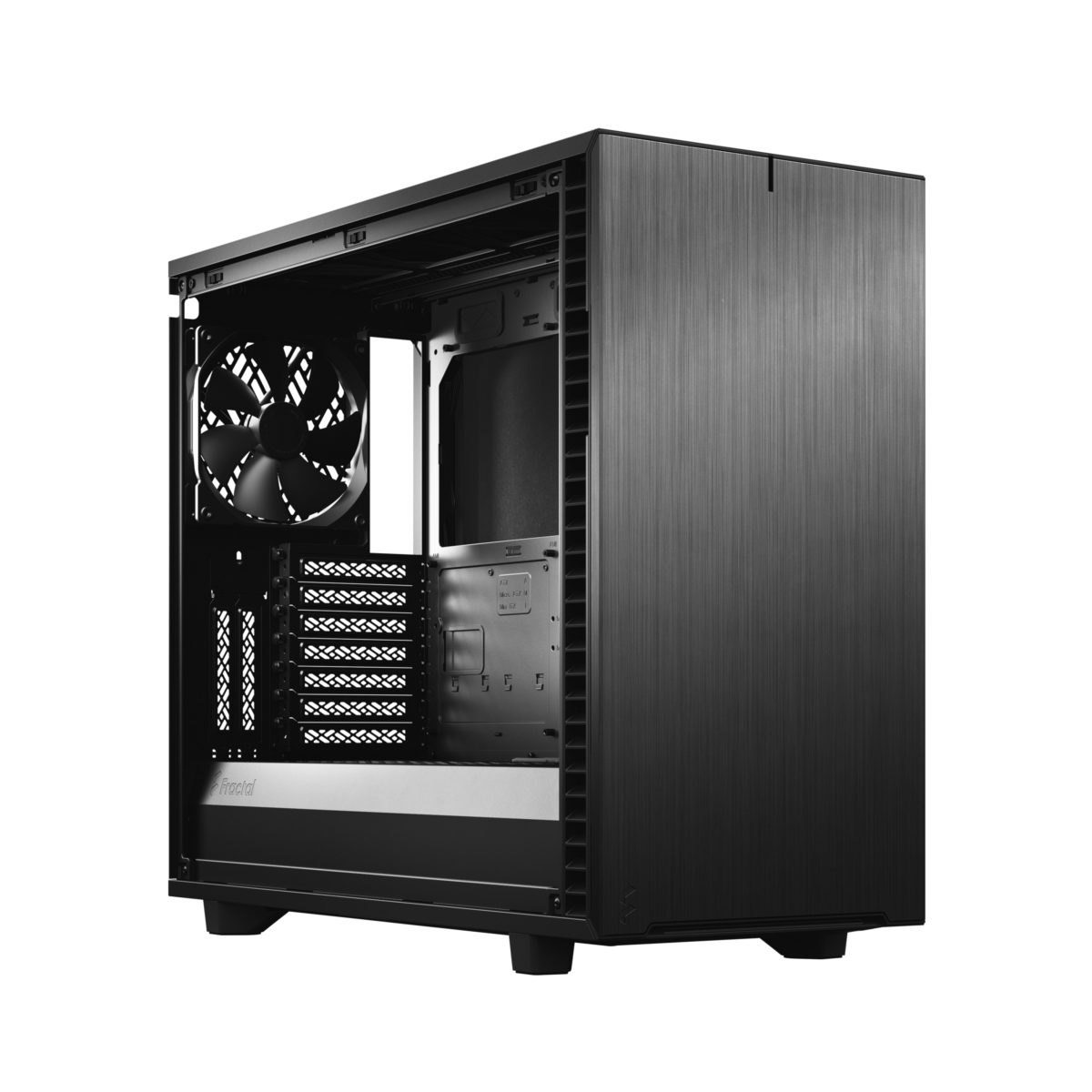

Define 7 Clear Tempered Glass

The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use.

- New chassis design opens up to fully expose the case interior

- Anodized aluminum front panel with reversible dual-handed hinges

- Multibracket converts unused fan positions to HDD, SSD or pump mounts

Introducing the Define 7 series

Re-defining versatility



Open and interchangeable

Swap in the ventilated panel to add three filtered fan positions; remove the entire top to build and route with zero hindrance



Superior airflow by design

Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans.

- Impressive cooling capacity with a total of nine 140 mm or 120 mm fan mounting positions

- Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access

- The single 5.25" ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering



Open layout for massive headroom

You'll find more than enough space for your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout.

- Adaptable dual-layout interior design fits large motherboards up to 285 mm E-ATX

- Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base



Superlative storage

6 SSD/HDD trays + 2 SSD brackets + 1 Multibracket included

Convert to Storage Layout and install up to 14 HDDs alongside four dedicated SSDs mounts

- 6 universal HDD/SSD brackets included with 14 positions total in Storage Layout

- 2 dedicated SSD brackets included with 4 positions total

- Versatile Multibracket converts any unused fan position to an HDD, SSD or pump mount

- Sturdy new HDD cage design with vibration damped trays



Exceptionally silent

Silence-optimized construction with industrial sound-damped front, top, and side panels



Cable management

Integrated cable guides with Velcro ties simplifies cable management behind the board



Nexus+ 2 fan hub

Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans



Type-C interface

Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging and speeds up to 10Gbps



Versatile new Multibracket

The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount.

Specifications

3.5"/2.5" Universal drive brackets

6 included, 14 positions total

Dedicated 2.5" drive brackets

2 trays included, 4 positions total

5.25" drive mounts

1

Expansion slots

7 + 2

Front ports

1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button

Total fan mounts

9 x 120/140 mm

Front fan

3 x 120/140 mm (2 x Dynamic X2 GP-14 included)

Top fan

3 x 120/140 mm

Rear fan

1 x 120/140 mm (1 x Dynamic X2 GP-14 included)

Bottom fan

2 x 120/140 mm

Dust filters

Top, 2 x front, full length bottom

Fixed velcro straps

Yes

Cable routing grommets

Yes

Captive thumbscrews

HDD brackets, SSD brackets, PSU bracket

Left side panel

Tempered glass

Right side panel

Industrial sound-damped steel

Compatibility

Motherboard compatibility

E-ATX (max 285 mm) / ATX / mATX / mITX

Power supply type

ATX

PSU max length

250 mm (with HDD cage installed)

GPU max length

Storage layout: 315 mm - Open layout: 491 mm (467 mm w/ front fan)

CPU cooler max height

185 mm

Front radiator

Up to 360/280 mm

Top radiator

Up to 360/420 mm

Rear radiator

120 mm

Bottom radiator

Up to 240/280 mm

Cable routing space

30 mm

Vertical GPU Support (with Flex VRC-25)

65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling

Dimensions

Case dimensions (LxWxH)

547 x 240 x 475 mm

Case dimensions w/o feet/protrusions/screws

533 x 240 x 451 mm

Package dimensions (LxWxH)

558 x 363 x 641 mm

Net weight

13.45 kg

Package weight

15.94 kg

Volume

57.7 liters

Other

Package contents

Define 7 case. Accessory box. User manual. Ventilated top. 4 x HDD/SSD trays (for a total of 6)

Product code

Black/White - FD-C-DEF7A-05
